- Economical processing of structural steel of all thicknesses.
- High flexibility due to the ability to process pipes and non-ferrous metals.
- Efficiency in thin metal sheets processing.
- Minimal downtime due to the nozzle changer option and one head strategy.
- Maximum energy saving.

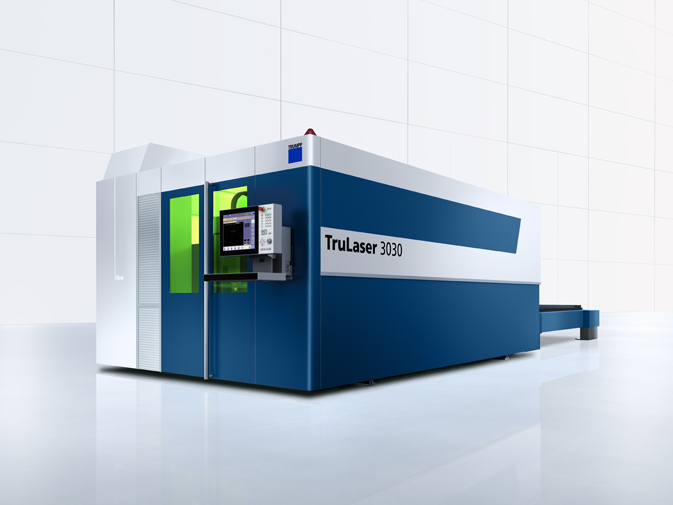

Working area: Axis X - 3000 mm, Axis Y - 1500 mm, Axis Z - 115 mm
Maximum material thickness using the TruDisk 4001:
Structural steel - 20 mm, Stainless steel - 20 mm, Aluminum - 20 mm, Copper - 8 mm, Brass - 8 mm
Our Company owns the highest quality laser cutting machine of extraordinary flexibility. According to the machine's manufacturer the MAZAK SUPERTURBO X CHAMPION sets new era in laser design. The machine allows for continuous cutting of materials of various kind with different thickness without the need to change lenses or nozzles. Preparatory and finishing times as well as setting times get much shorter due to the most modern Mazatrol Preview control. Takumi rigid frame guarantees absolute stiffness. Fixed length of laser beam allows for optimal cutting on a work surface with the dimensions of 2500 mm x 1250 mm. The STX uses great power of CO2 condensed laser beam as a cutting tool. Such a technological solution allows to achieve high precision.
DETAILS DEBURRING AND PROCESSING
The top-class COSTA Mod. MD4 CVV 1150 wide-belt grinder allows for precise removal of slag as well as blunting and rounding of sharp edges of laser cut elements, which significantly improves the quality of manufactured details. In addition to grinding, the device also allows to polish the surface of workpieces, and also removes from the surface sediment formed after cutting with oxides and all kinds of graining. This is extremely important for subsequent chemical treatment and painting, ensuring proper paint adhesion, especially at the edges.
METAL SHEETS CUTTING
Precise metal sheets cutting with guillotine shears SMD LGS-10x3050.
Maximum cutting thickness - 10 mm
Maximum cutting length - 3050 mm

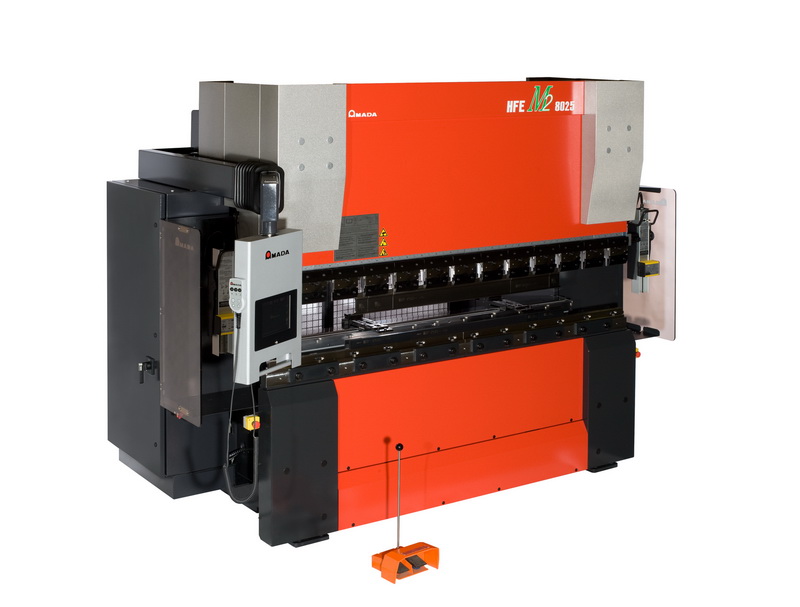

Two press brakes Amada Type HFE-M2.
Pressure - 1000 kN
Length of bending - 3000 mm
Excenter press ZMM-TOS EPC-400.
Pressure - 40 tons
Dimensions of the table - 440 / 630 mm
CNC TURNING AND MILLING
Efficient, accurate and reliable CNC turning and milling center Mazak Quick Turn Smart 200M U1000.
Maximum turning diameter - 360 mm
Maximum diameter mechining of a bar - 65 mm
Maximum turning length - 1052 mm
Magazine-feeder of a short bar BARLOAD BA65.
Welding by TIG and MIG/MAG (Bester, Kemmpi), bonding (Tecna), processing of pipes and profiles (Bernardo, Uzma), bandsaw and circular saw cutting (Bianco, Imet), other locksmith services, CAD 2D and 3D design (Autodesk AutoCAD, Inventor)...
