Portable badminton stand on wheels, with regulated load

Portable badminton stand on wheels, with regulated load

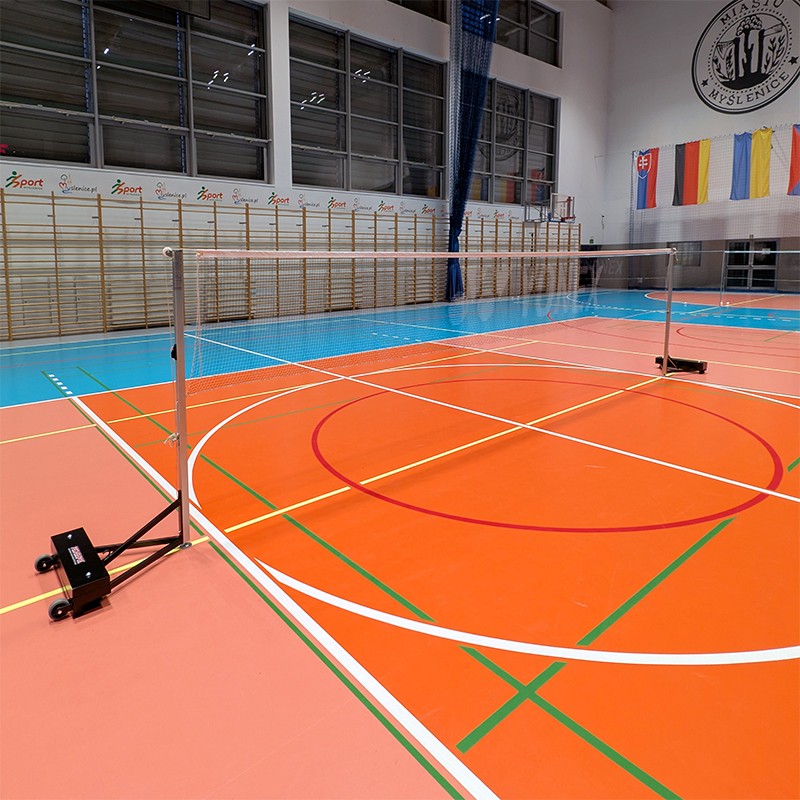

Portable badminton stands on wheels, with regulated load 30/60/90 kg. Compliant with BWF regulations.

The posts are made of closed steel profile 40x40x2 mm. The post with a tension is equipped with a simple to use and effective clamping cleat for the proper tension of the net. Both posts are equipped with arresting hooks, made of steel bars, to fix the net. The upper cord of the net is passed through the plastic roll, placed in the upper part of the posts.

Rubber-finished foot, mounted in the bottom part, is used to adjust the height of the stand, which allows to set the net at the correct height.

The stands are made of closed steel profiles 30x20x1.5 mm and hot-rolled metal sheet. The loads, made of a flat steel bar with dimensions of 150x40x620 mm, are bolted to each of the stands. Plastic and rubber wheels with a diameter of 80 mm, mounted on the back of the base, facilitate easy transport after tilting the stands.

The post is protected against corrosion by galvanizing; the stand and loads are powder coated in black.

Badminton posts are certified for compliance with the standards PN-EN 1509:2008 - "Playing field equipment - Badminton equipment – Functional and safety requirements, test methods”.

Badminton stand has been designed in such a way that the load can be increased by further elements (up to 3 loads = 90 kg).

10-07-30 Portable training badminton stands on wheels, with a load 30 kg (steel bar 1 x 30 kg per 1 stand)*

10-07-60 Professional portable badminton stands on wheels, with regulated load 30/60 kg (steel bars 2x30 kg per 1 stand). Compliant with BWF regulations

10-07-90 Professional portable badminton stands on wheels, with regulated load 30/60/90 kg (steel bars 3x30 kg per 1 stand). Compliant with BWF regulations

*A 30 kg load may not provide the net height required by the standard for professional play
