Basketball ring SPRINGMATIC, tilting on springs
  • Basketball ring SPRINGMATIC, tilting on springs

Basketball ring SPRINGMATIC, tilting on springs - for indoor use

1-06-1/70, 1-06-10/70
VAT included

Basketball ring, tilting on the springs, with additional reinforcements, powder coated, intended for use in indoor sports facilities

Quantity
mail_outline Ask a question

Basketball ring SPRINGMATIC, tilting on springs - for indoor use

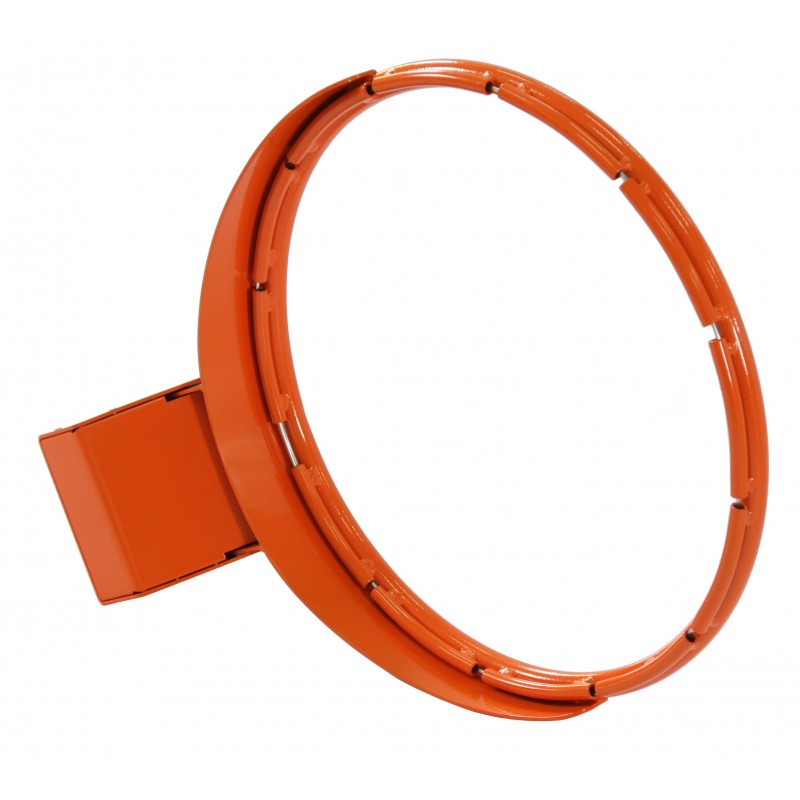

The ring is made of steel rod with the diameter of 20 mm. Supporting element and stiffening collar are made of steel sheets 3 mm thick. Fixing plate has four mounting holes in standard horizontal spacing of 110 mm and vertical spacing of 90 mm.

The ring has a built-in tilting mechanism, using one or a few compression springs - it tilts with a load of approx. 35, 70 or 105 kg. To increase the safety of use, the mechanism is masked with a cover, made of bent steel plate.

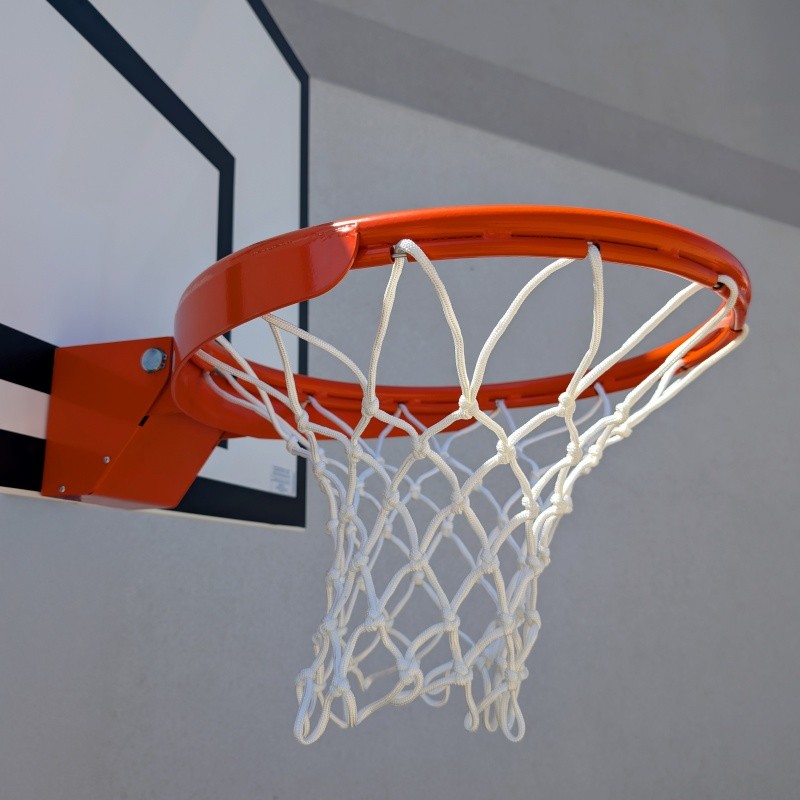

The rings mounted to backboards installed indoor are powder-coated (colour in accordance with regulations). For outdoor use, we offer an optional double corrosion protection (hot galvanizing + powder coating)*.

Basketball rings SPRINGMATIC for indoor use Art. No. Tilts with a load Typical

Available on request

Minimum order quantity: 50 pcs.
Basketball ring SPRNGMATIC, powder coated, equipped with a system of 12 safe hooks to attach the net 1-06/35 35 kg x
1-06/70 70 kg x
1-06/105 105 kg x
Basketball ring SPRINGMATIC, powder coated, net fixing system using the rod (without hooks) 1-06-1/35 35 kg x
1-06-1/70 70 kg x
1-06-1/105 105 kg x
Basketball ring SPRINGMATIC, powder coated, with bracing collar made of bent metal sheet with laser cut mounting holes for fixing the net 1-06-10/35 35 kg x
1-06-10/70 70 kg x
1-06-10/105 105 kg x

*The use of double anti-corrosion protection technology for steel structures should be individually agreed with the Sales Department.

1-06-1/70, 1-06-10/70
