Basketball ring SPRINGMATIC, tilting on springs - for outdooruse
  • Basketball ring SPRINGMATIC, tilting on springs - for outdooruse
  • Basketball ring SPRINGMATIC, tilting on springs - for outdooruse

Basketball ring SPRINGMATIC, tilting on springs - for outdoor use

1-06-05/70, 1-06-10C/70
VAT included

Basketball ring, tilting on the springs, with additional reinforcements, hot-dip galvanized, intended for use on outdoor sports fields

Quantity
mail_outline Ask a question

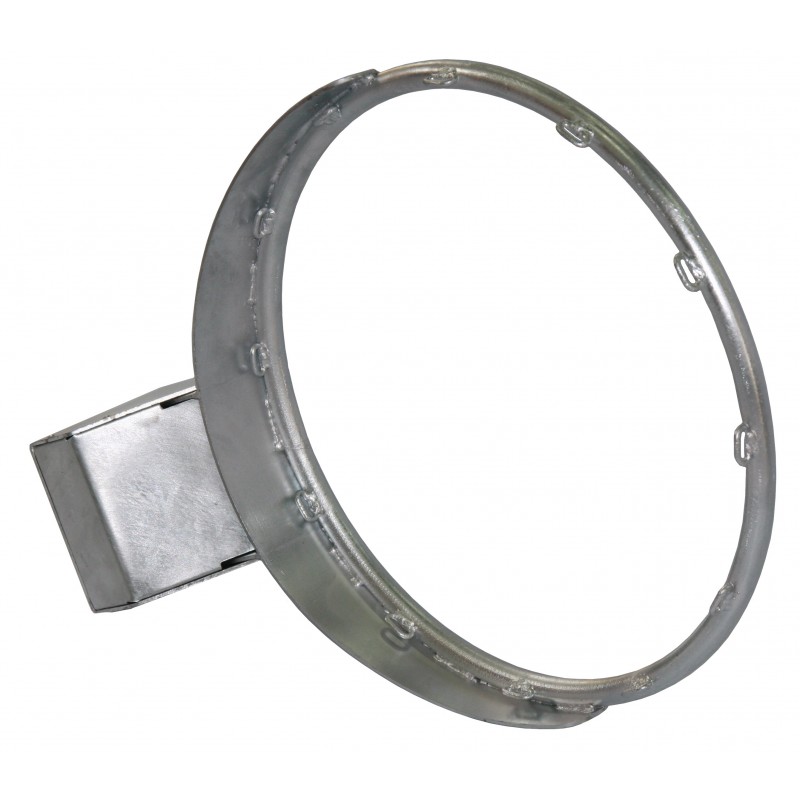

Basketball ring SPRINGMATIC, tilting on springs - for outdoor use

The ring is made of steel rod with the diameter of 20 mm. Supporting element and stiffening collar are made of steel sheets 3 mm thick. Fixing plate has four mounting holes in standard horizontal spacing of 110 mm and vertical spacing of 90 mm.

The ring has a built-in tilting mechanism, using one or a few compression springs - it tilts with a load of approx. 35, 70 or 105 kg. To increase the safety of use, the mechanism is masked with a cover, made of bent steel plate.

Rings mounted to backboards installed outdoor are hot-dip galvanized.

Basketball rings SPRINGMATIC for outdoor use Art. No. tilts with
a load 		Typical

Available on request

Minimum order quantity: 50 pcs.
Basketball ring SPRINGMATIC, hot-dip galvanized, equipped with a system of 12 safe hooks to attach the chain net 1-06C/35 35 kg x
1-06C/70 70 kg x
1-06C/105 105 kg x
Basketball ring SPRINGMATIC, hot-dip galvanized, net fixing system using the rod (without hooks) 1-06-1C/35 35 kg x
1-06-1C/70 70 kg x
1-06-1C/105 105 kg x
Basketball ring SPRINGMATIC, hot-dip galvanized, equipped with 12 handles to attach the chain net


 1-06-5/35 35 kg x
1-06-5/70 70 kg x
1-06-5/105 105 kg x
Basketball ring SPRINGMATIC, hot-dip galvanized, equipped with 8 handles to attach the chain net

 1-06-4/35 35 kg x
1-06-4/70 70 kg x
1-06-4/105 105 kg x
Basketball ring SPRINGMATIC, hot-dip galvanized, with bracing collar made of bent metal sheet with laser cut mounting holes for fixing the net

 1-06-10C/35 35 kg x
1-06-10C/70 70 kg x
1-06-10C/105 105 kg x

1-06-05/70, 1-06-10C/70
