Portable basketball backstop NAJA 225

Portable basketball backstop NAJA 225

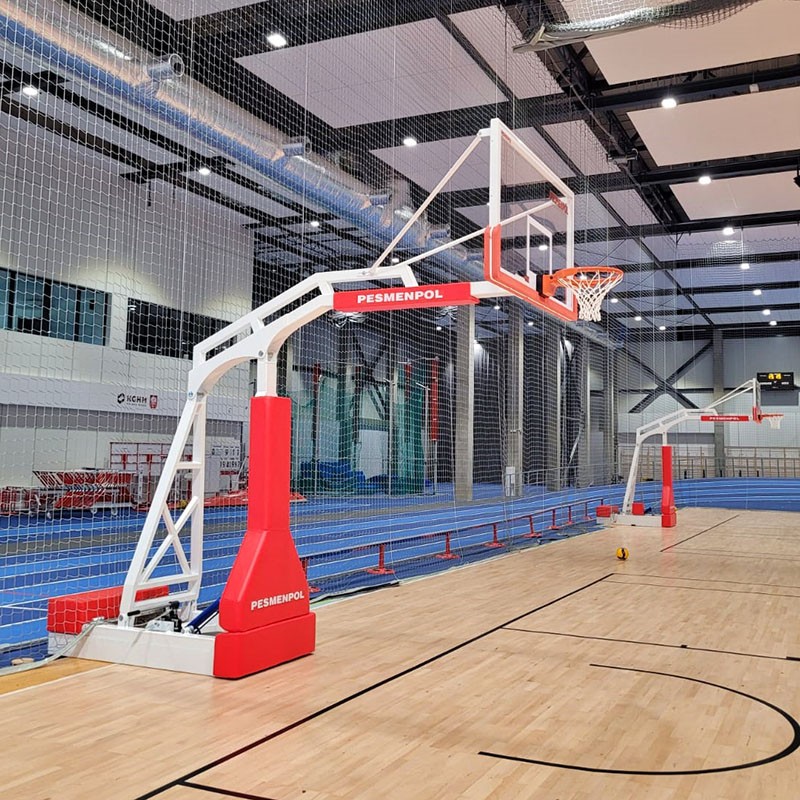

Portable basketball backstop NAJA 225, projection 2,25 m, hydraulically folding. Equipped with acrylic glass backboard 105x180 cm, tilting ring with a tournament net, structure and basketball backboard protecting pads.

The structure equipped with a system to ensure safe floor load - Dynamic Base Frame (DBF) - movable base frame is lowered during the basket lift, and loads the floor on the large area. Dimensions after folding: L=390 cm, H=210 cm, W=190 cm. Steel ballast load in a form of bars. The weight of a whole structure: 900 kg.

1-77 Hydraulically manually folded

1-78 Hydraulically folded with electric motor support
