Roofed stationary tribune with 3 or 4 rows - for outdoor use

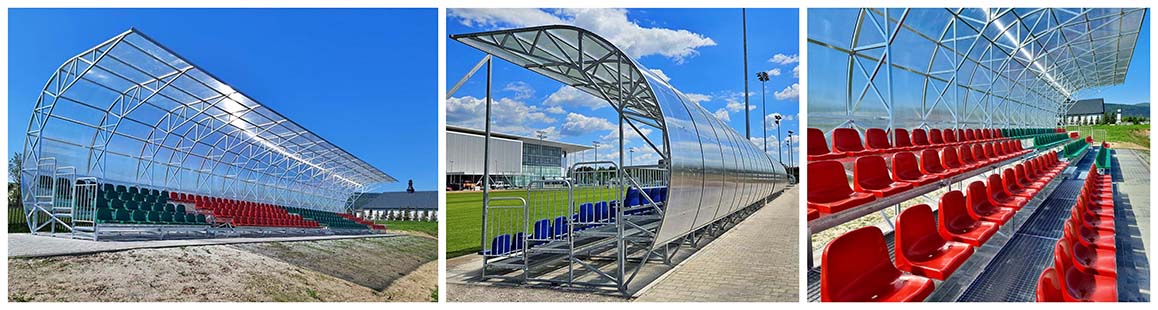

Stationary tribune with steel structure and rounded roof - for outdoor use

• The structure of the tribune with rounded roofing is made of steel profiles. Structural elements are protected against corrosion by hot dip galvanizing
• Lattice platform type VEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
• Safety railings
• The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes
• Certificate of compliance with EN-PN standards

Material and technical specification:

General information

Stationary roofed tribune for outdoor use, with 3 or 4 rows, plastic seats and rounded roof, covered with cellular polycarbonate.

The tribune consists of: transverse frames, connectors, brackets for installing seats, platforms and seats. The frames are mounted in standard spacing of 2000 mm or 1500 mm. Extruded lattice platforms, type KW/33x44/30x2, are screwed directly to the structure of the tribune. The frame of the roof structure, consisting of two parts, is assembled to the transverse frames of the tribune and anchored directly to the ground (concrete foundations).

The cover of the rounded roof is made of cellular polycarbonate plates 8 mm thick, coated 2xUV. The whole structure is protected against corrosion by hot-dip galvanizing.

Plastic seats (hard to ignite) available in three types: without backrest, with medium-height backrest and with high backrest. The tribune is also equipped with middle steps and safety handrails.

The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department.
