Stationary tribune with a riser, type TSD-350 - for outdoor use

Stationary tribune with a riser, type TSD-350 - for outdoor use

Intended: for installation at outdoor pitches, sports stadiums, performance venues, schools and event facilities, etc.

Basic features of the system:

• The structure of the tribune is made of steel profiles. Ready-made structural elements are protected against corrosion by hot dip galvanizing
• Lattice platform type WEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
• Risers made of steel sheets, hot dip galvanized
• Safety railings
• The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes
• Certificate of compliance with EN-PN standards

Material and technical specification:

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

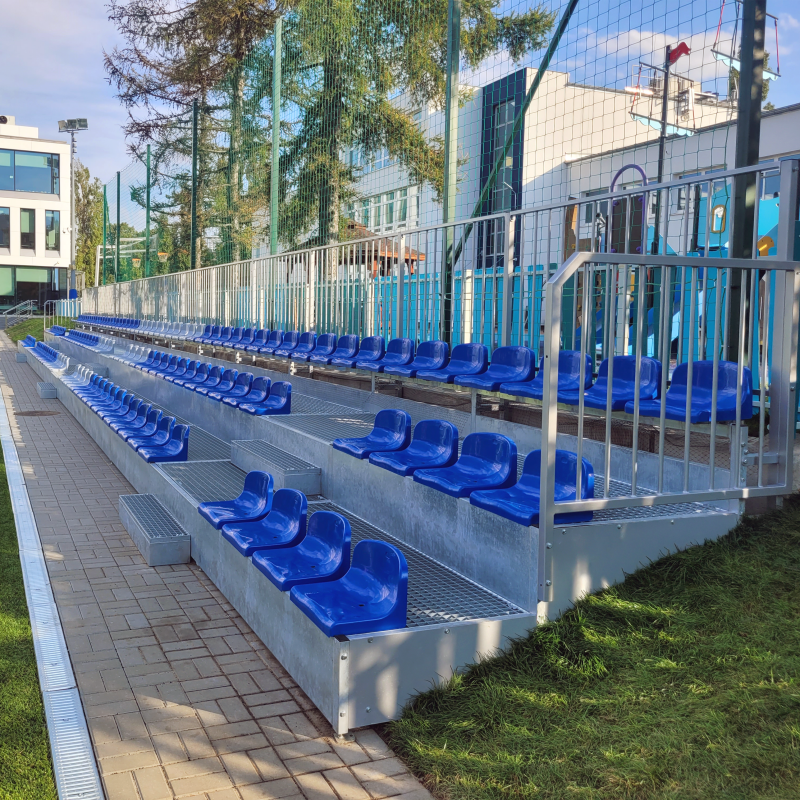

Stationary tribune for outdoor use, with plastic shell seats; adjustable feet, risers made of steel sheet and platforms made of galvanized steel lattice. Level difference between following platforms is 350 mm, height of the middle steps: 175 mm.

The structure of the tribune is made of closed steel profiles (transverse frames, connectors, brackets for installing seats) and hot rolled metal sheets 2 mm thick, protected by hot dip galvanizing. The frames are mounted in standard spacing of 2000 mm or 1500 mm.

Plastic seats (hard to ignite) are available in three types: without backrest, with medium-high backrest and with high backrest.

Depending on the design and safety requirements, the tribune may be equipped with hot-dip galvanized rear and side rails.

The design of the tribune is customized for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department.
