Stationary tribunes with plastic seats - for indoor use

Reference 14-51 - 14-57

VAT included

Segmental stationary demountable sports tribunes with plastic seats, intended for use in sports halls, certified for compliance with PN-EN standards

Quantity

Ask a question

Stationary tribunes with plastic seats - for indoor use

Intended: for indoor use

Basic features of the system:

Certificate of compliance with EN-PN 13200 standards
Steel structure, powder coated
Modern design and high aesthetic
Individual design - the ability to adapt to each facility
Safe platforms made of non-slip plywood

Material and technical specification:

Axial spacing of seats	500 mm
Type of seats	Plastic seat without backrest, H=11 cm Plastic seat with medium-high backrest, H=25 cm Plastic seat with high backrest, H=32 cm
Level difference between platforms	280 mm
The height of the middle steps	140 mm
Steps finishing	Aluminum safety angles with a rubber (anti-slip) insert
The width of the entrances	>120 cm
Metal surfaces finishing	Powder coating by the RAL palette As a standard light gray RAL 7035
Railings colour	As a standard RAL 7035 or in the colour of the structure
Material of the platform	Anti-slip board 18 mm thick
Maximum loading	According to the standard PN-EN 13200-1

The number of rows / Parameters	2	3	4	5	6	7	8
The depth of the tribune [cm]	132	217	302	387	472	557	642
The height of the last platform [cm]	28	56	84	112	140	168	196
Average number of seats per 1 m *	~3,5	~5	~6,5	~8	~9,5	~11	~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

General information

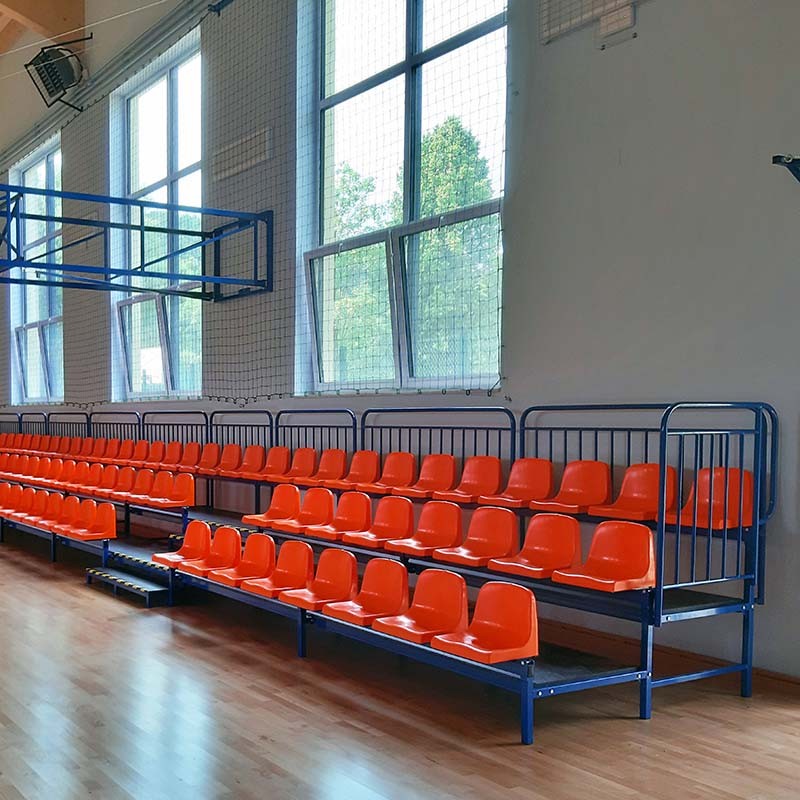

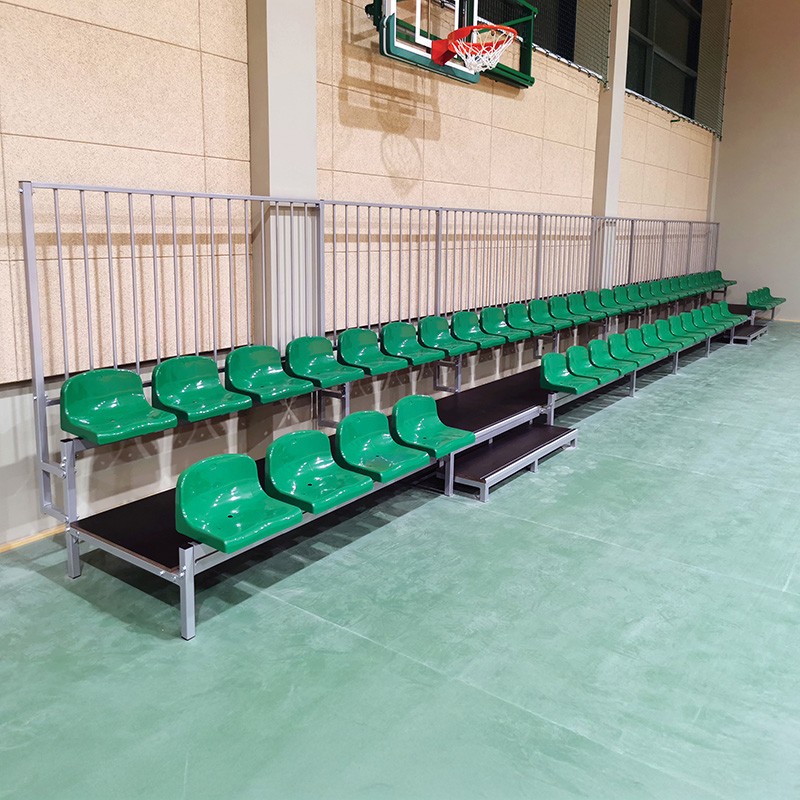

Stationary tribune for indoor use, with plastic seats and platforms made of anti-slip plywood.

The structure of the tribune is made of closed steel profiles (transverse frames, connectors, brackets for attaching seats) and hot rolled metal sheets 1,5 mm thick, bent in a special shape, powder coated to any color in the RAL palette (as a standard RAL 7035 – light gray). The frames are mounted in standard spacing of 2000 m or 1500 mm.

Hard to ignite plastic seats available in three types: without backrest, with medium-high backrest and with high backrest. The tribune is equipped with middle steps and safety railings, installed at the rear and at the sides, powder coated.

The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes.

Length of the tribune - depending on the required number of seats and rows, or conditioned by restrictions in the development of the area.

In order to obtain full information, please contact the Technical and Trade Department.
