Set of elements for the installation of protective nets on outdoor playgrounds

VAT included

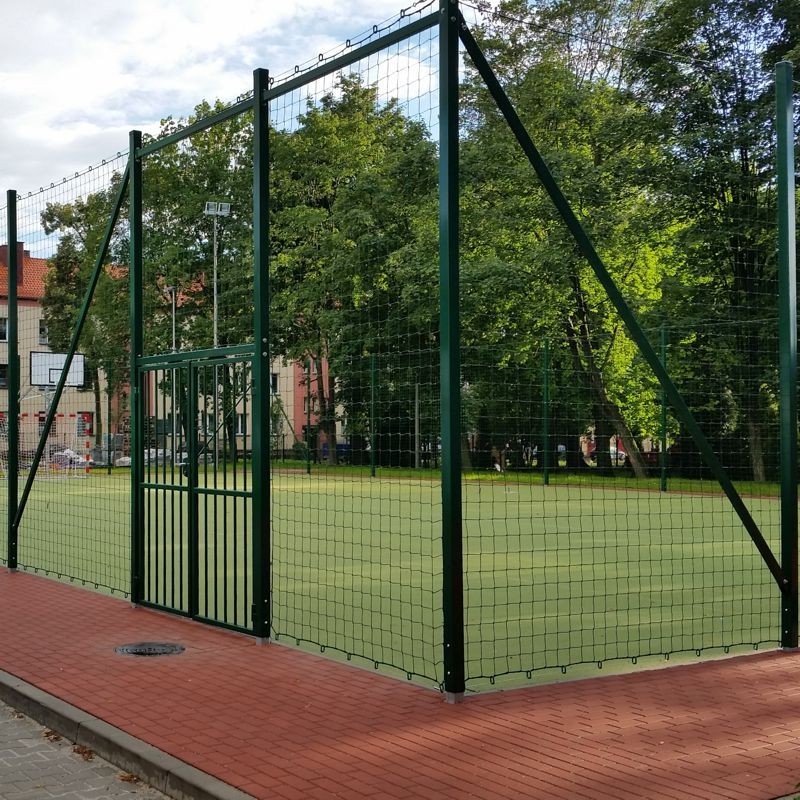

Protective net fixing structure (ball catchers) for an outdoor sports field - a set of steel or aluminum posts with struts, mounting sleeves, ropes and elements for attaching the net

Quantity

Ask a question

Description
Product Details

Set of elements for the installation of protective nets on outdoor playgrounds

Protective net fixing posts, made of steel or reinforced aluminum square profile 80x80 mm, mounted in assembly sleeves.

Outermost and corner posts are mounted at a spacing of 3 m, others posts are fixed at max. spacing of 6 m. The maximum height of the posts is 6 m (only for special order - up to 8 m).

Steel posts are powder coated or hot dip galvanized; aluminum posts are anodized.

Assembly sleeves are made of steel sheets with a special shape, fitted to the steel or aluminum posts.

The set includes:

steel or aluminum posts (square profile 80x80 mm),
assembly sleeves, embedded in concrete foundation,
struts with fixing plates, connecting the outermost posts, the set of fixing elements (including: ropes, turnbuckles and Teflon carabiners),
nets - according to the list of protective nets: polyethylene (more resistant to weather conditions) or polypropylene.

Art. No.	Posts for fixing protective net
6-30	Steel post (profile 80x80x2 mm) for fixing protective nets outdoor, up to 4 m high (the set includes assembly sleeves and ropes)
6-31	Steel post (profile 80x80x2 mm) for fixing protective nets outdoor, 4,5 m - 6 m high (the set includes assembly sleeves and ropes)
6-31-4-3	Steel post (profile 80x80x3 mm) for fixing protective nets outdoor, up to 4 m high (the set includes assembly sleeves and ropes)
6-31-6-3	Steel post (profile 80x80x3 mm) for fixing protective nets outdoor, 4,5 m - 6 m high (the set includes assembly sleeves and ropes)
6-31-8-3	Steel post (profile 80x80x3 mm) for fixing protective nets outdoor, 6,5 m - 8 m high (the set includes assembly sleeves and ropes)
6-31-4-4	Steel post (profile 80x80x4 mm) for fixing protective nets outdoor, up to 4 m high (the set includes assembly sleeves and ropes)
6-31-6-4	Steel post (profile 80x80x4 mm) for fixing protective nets outdoor, 4,5 m - 6 m high (the set includes assembly sleeves and ropes)
6-31-8-4	Steel post (profile 80x80x4 mm) for fixing protective nets outdoor, 6,5 m - 8 m high (the set includes assembly sleeves and ropes)
6-40Z	Reinforced aluminum post (profile 80x80 mm with additional ribs) for fixing protective nets outdoor, up to 4 m high (the set includes assembly sleeves and ropes)
6-41Z	Reinforced aluminum post (profile 80x80 mm with additional ribs) for fixing protective nets outdoor, 4,5 m - 6 m high (the set includes assembly sleeves and ropes)
