Telescopic tribune with upholstered seats ST-50

Telescopic tribune, equipped with upholstered seats ST-50

Intended for indoor use

• Individual design - the ability to adapt to each facility
• Modern design and high aesthetic
• Simple way of folding and unfolding, based on frictionless roller system; tribune can be folded and unfolded by only one person
• Safe bearing wheels
• The tribune colours can be freely configured
• The safe platforms are made of anti-slip board
• Additional middle steps
• The steps finished with aluminum angles with rubber (anti-slip) insert
• There is no need to disassemble railings in order to fold the tribune

Material and technical specification:

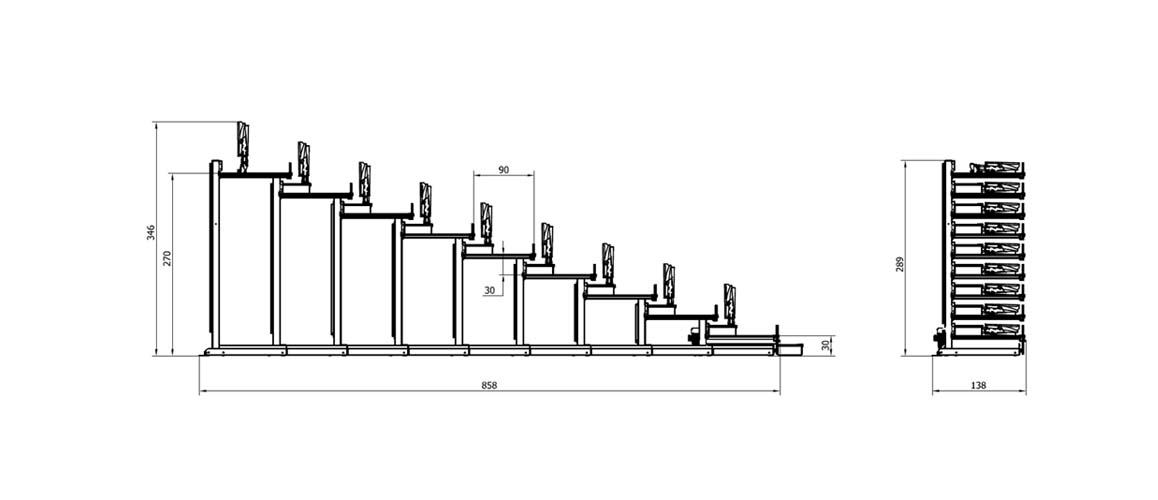

Telescopic tribune with gravity-tilting seats with armrests, equipped with electric drive. The system consists of moving frames, front- and back connectors, crossbeams and platform boards.

Moving frames are made of closed steel profiles 80x40x2 mm, 40x40x2 mm, steel C-sections 40x40x40x2 mm, 20x40x20x3 mm and hot rolled metal sheets #3, #5 and #8 thick. The frame is equipped with safety bearing wheels Φ100 mm (polyamide with polyurethane tread or with aluminum hub and polyurethane tread), and leading rollers, moving inside the profiled furrow of the following frame. The frames are connected using back and front connectors. The front connector is made of profile 60x40x2; the back connector is made of cold rolled metal sheet 1,5 mm thick. The back connector is bent into a special shape and therefore can carry greater load.

The structure is additionally stiffened by crossbeams and struts, made of closed steel profile 40x27x2mm, finished with fixing plates. Platform boards, made of 18 mm thick HEXA anti-slip plywood, in black as standard (optionally: covered with carpet), are assembled directly to the structure. The seats with folding mechanism are attached to the platforms.

The single seat consists of gravity-tilting seat, backrest and armrests. An ergonomic shaped chair with upholstered seat and backrest, gravity-tilting, with integrated armrests. The seat and backrest are synchronized with the movement of armrest. The structure of the seat and backrest is made of steel and aluminum. Upholstery is made of high-quality fire-resistant fabric, under which there is a self-extinguishing polyurethane foam filling. The armrests are made of polyurethane (as a standard).

In order to obtain full information, please contact the Technical and Trade Department
