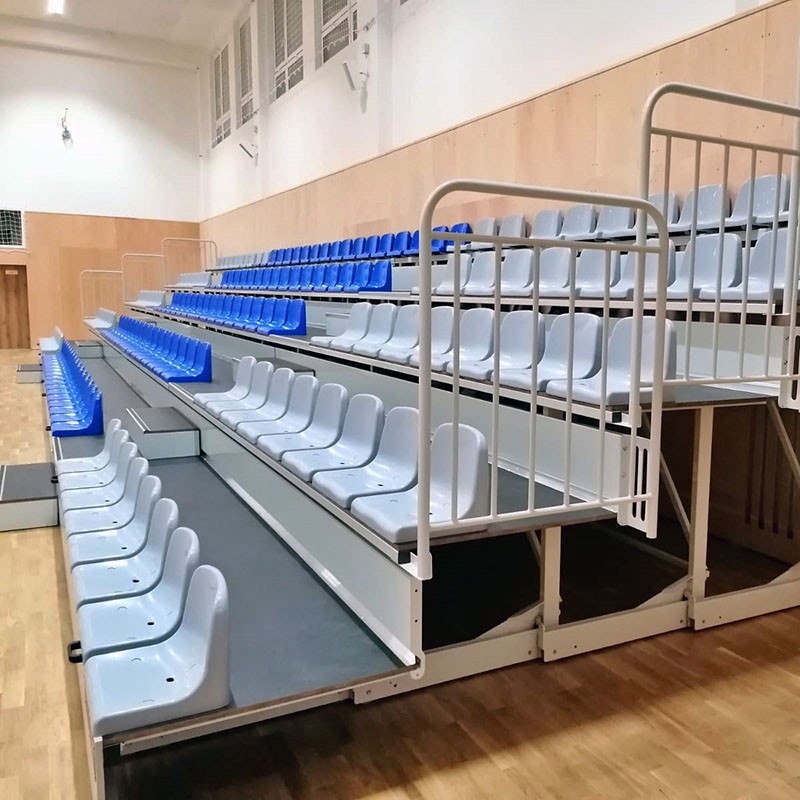

Telescopic tribune TTW-400 with plastic seats with high backrest in all rows

14-31
VAT included

Telescopic sports tribunes, equipped with a 32 cm high seat with double-wall backrest in all rows, operated manually or with electric drive, certified for compliance with PN-EN standards

Quantity
mail_outline Ask a question

Telescopic sports tribunes TTW-400, equipped with plastic seats H=32 cm with high double-wall backrest in all rows


Intended: for indoor use

Basic features of the system:
  • Individual design - the ability to adapt to each facility
  • Modern design and high aesthetic
  • Simple and effortless folding and unfolding of the structure based on the use of bearing-mounted rollers and wheels
  • Manual or electric control
  • Possibility to configure the tribune colours
  • Safe platforms made of anti-slip board
  • Additional middle steps
  • Load-bearing risers closing the platform space made of steel sheet
  • The steps finished with aluminum angles with anti-slip rubber insert
  • System protective railings, fixed or removable
  • Optional finishing solutions available
  • Possibility of adaptation between columns, into recesses, under balconies, etc.
  • Certificate of compliance with standards

Material and technical specification:

Axial spacing of seats 450 - 600 mm
Type of seats Plastic seats H=32 cm, with high backrest with double back wall in all rows
Level difference between platforms 400 mm
The height of the middle steps 200 mm
Finishing of walkways and steps Aluminium angle with an anti-slip rubber insert
The width of the entrances >120 cm
Metal surfaces finishing Powder coating by the RAL palette
As a standard RAL 7035
Railings colour As a standard RAL 7035 or in the colour of the structure
Platform material HEXA anti-slip board 18 mm thick, black as standard
Other finishing available on special request
Riser material Bent steel sheet 1.5 mm thick
Maximum permissible tribune load According to the standard PN-EN 1991-1-1

The number of rows / Parameters 3 4 5 6 7 8 9 10 11 12 13 14 15 16
The depth of the tribune in open position [cm] 240 322 404 486 568 650 732 814 896 978 1060 1142 1224 1306
The depth of the tribune in closed position [cm] 124 124 124 124 124 124 124 124 124 124 124 124 124 124
The height of the last platform [cm] 80 120 160 200 240 280 320 360 400 440 480 520 560 600

NOTE: The dimensions given in the table may differ from the actual values in the finished project. This depends on site conditions, seating arrangements, number of entrances, etc.


Structure

The tribune consists of: running frames, rear and front connectors, crossbeams, struts, bottom bracing, masking panels, platform boards and seats.


Running system

Safety bearing wheels Φ100 mm with polyurethane tread and leading rollers system.


Railings

Depending on local conditions and the configuration of the tribune, either fixed railings: straight (up to 5 rows) or reclining (more than 5 rows), or removable railings can be used.


Colorus
  • Colorus of seats – standard: blue, red, yellow, green. For large projects, other colours are also available, according to customer requirements
  • Colour of masking panels – light gray as a standard. It is possible to make panels in other colours
  • Colour of the steel structure - according to the RAL palette - standard RAL 7035

Optional solutions available
  • LED lighting on communication routes
  • Side blinds covering the structure, fixed or removable
  • Mechanism for synchronous row expansion/retraction

Lengths of tribunes

Manual tribunes consist of modules, the dimensions of which are adapted individually for each facility. The maximum module width is 6 m.
Electrically operated tribunes are designed individually for each facility - as one module with a length adapted to site conditions.

In order to obtain full information, please contact the Technical and Trade Department.
