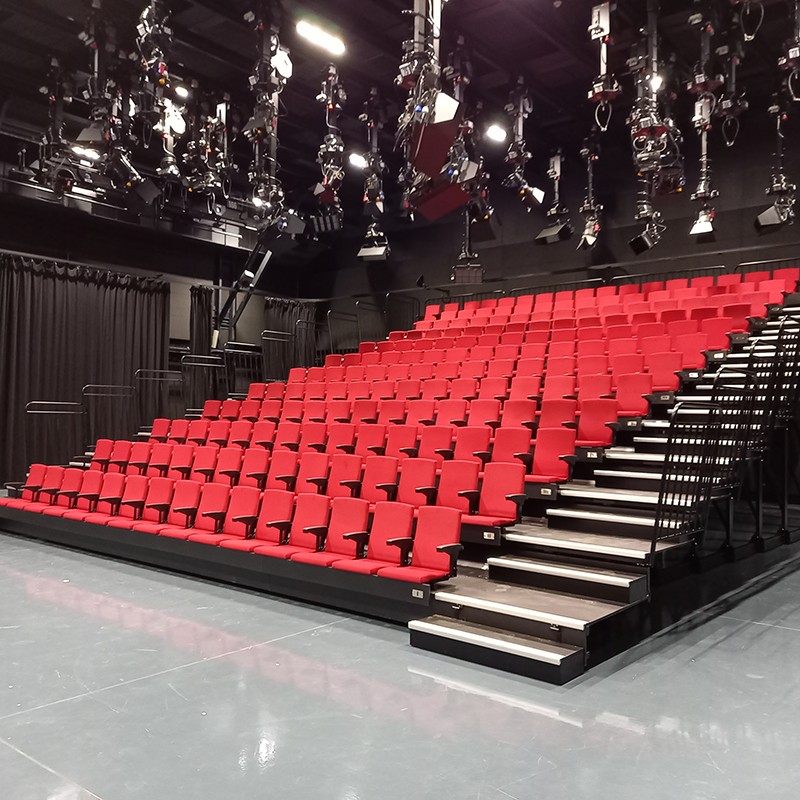

Telescopic tribune with upholstered seats ST-50-mc with folding backrests

Telescopic tribune with upholstered seats ST-50-mc with folding backrests

Intended for indoor use

• Individual design - the ability to adapt to each facility
• Modern design and high aesthetic
• Simple and effortless folding and unfolding of the structure based on the use of bearing-mounted rollers and wheels
• Manual or electric control
• Possibility to configure the tribune colours
• Safe platforms made of anti-slip board
• Additional middle steps
• Load-bearing risers closing the platform space made of steel sheet
• The steps finished with aluminum angles with anti-slip rubber insert
• System protective railings, fixed or removable
• Optional finishing solutions available
• Possibility of adaptation between columns, into recesses, under balconies, etc.
• Certificate of compliance with standards

Material and technical specification:

The tribune consists of: running frames, rear and front connectors, crossbeams, struts, bottom bracing, masking panels, platform boards and seats.

Safety bearing wheels Φ100 mm with polyurethane tread and leading rollers system.

Depending on local conditions and the configuration of the tribune, either fixed railings: straight (up to 5 rows) or reclining (more than 5 rows), or removable railings can be used.

• Colorus of seats – according to available materials
• Colour of masking panels – light gray as a standard. It is possible to make panels in other colours
• Colour of the steel structure - according to the RAL palette - standard RAL 7035

• LED lighting on communication routes
• Side blinds covering the structure, fixed or removable
• Mechanism for synchronous row expansion/retraction
• Platforms covered with carpet

Manual tribunes consist of modules, the dimensions of which are adapted individually for each facility. The maximum module width is 6 m.
Electrically operated tribunes are designed individually for each facility - as one module with a length adapted to site conditions.

Upholstered Minor Compact seat with an ergonomic shape and a hinged folding backrest. The hinge mechanism and seat substructure are made of steel. The upholstery is made of high-quality, flame-retardant fabric, resistant to pilling and fading; the seat and backrest are filled with self-extinguishing polyurethane foam. The upholstery on the back of the backrest is additionally protected by steel reinforcement. The ergonomic shape of the seat and backrest ensures comfort and convenience of use. The seat can be optionally equipped with armrests.

In order to obtain full information, please contact the Technical and Trade Department
