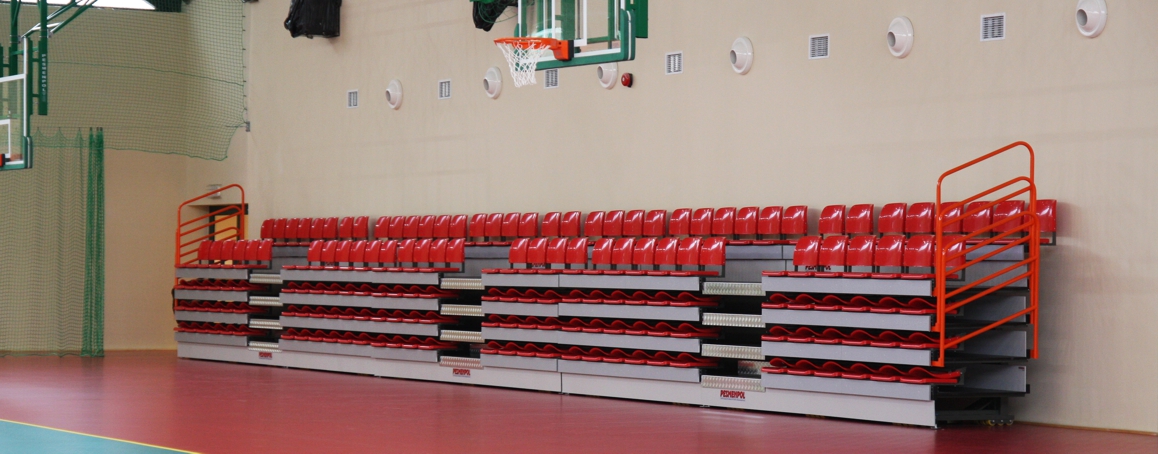

Telescopic tribune with plastic seats with folding backrest

Reference 14-121 - 14-123-16

VAT included

Telescopic sports tribune, equipped with plastic seats with folding backrest; tribune certified for compliance with PN-EN standards

Quantity

Ask a question

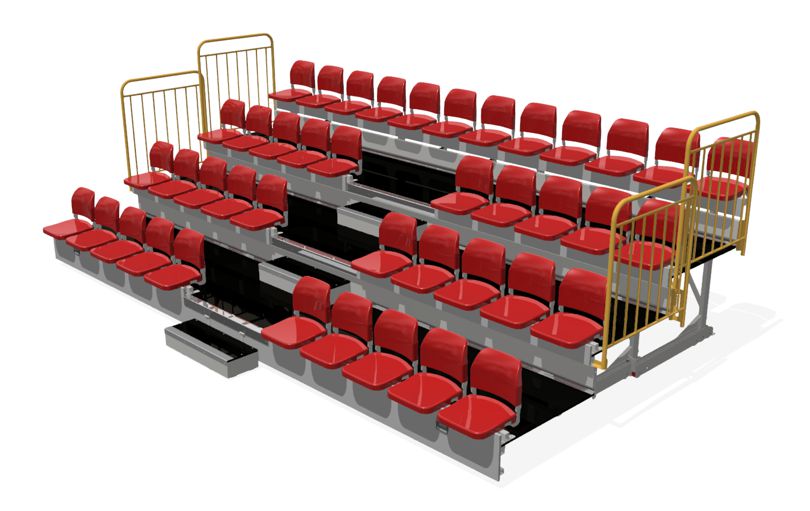

Telescopic tribunes, equipped with plastic seats with folding backrest

Intended: for indoor use

Basic features of the system:

Individual design - the ability to adapt to each facility
Modern design and high aesthetic
Simple and effortless folding and unfolding of the structure based on the use of bearing-mounted rollers and wheels
Manual or electric control
Possibility to configure the tribune colours
Safe platforms made of anti-slip board
Additional middle steps
Load-bearing risers closing the platform space made of steel sheet
The steps finished with aluminum angles with anti-slip rubber insert
System protective railings, fixed or removable
Optional finishing solutions available
Possibility of adaptation between columns, into recesses, under balconies, etc.
Certificate of compliance with standards

Material and technical specification:

Axial spacing of seats	450 mm - 600 mm
Type of seats	Two-piece seats with folding backrest ~ 38 cm
Level difference between platforms	320 mm
The height of the middle steps	160 mm
Finishing of walkways and steps	Aluminium angle with an anti-slip rubber insert
The width of the entrances	>120 cm
Metal surfaces finishing	Powder coating by the RAL palette As a standard RAL 7035
Railings colour	As a standard RAL 7035 or in the colour of the structure
Platform material	HEXA anti-slip board 18 mm thick, black as standard Other finishing available on special request
Riser material	Bent steel sheet 1.5 mm thick
Maximum permissible tribune load	According to the standard PN-EN 1991-1-1

The number of rows / Parameters	3	4	5	6	7	8	9	10	11	12	13	14	15	16
The depth of the tribune in open position [cm]	263	358	453	548	643	738	833	928	1023	1118	1213	1308	1403	1498
The depth of the tribune in closed position [cm]	151	151	151	151	151	151	151	151	151	151	151	151	151	151
The height of the last platform [cm]	64	96	128	160	192	224	256	288	320	352	384	416	448	480

NOTE: The dimensions given in the table may differ from the actual values in the finished project. This depends on site conditions, seating arrangements, number of entrances, etc.

Structure

The tribune consists of: running frames, rear and front connectors, crossbeams, struts, bottom bracing, masking panels, platform boards and seats.

Running system

Safety bearing wheels Φ100 mm with polyurethane tread and leading rollers system.

Railings

Depending on local conditions and the configuration of the tribune, either fixed railings: straight (up to 5 rows) or reclining (more than 5 rows), or removable railings can be used.

Colorus

Colorus of seats – standard: blue, red, yellow, green. For large projects, other colours are also available, according to customer requirements
Colour of masking panels – light gray as a standard. It is possible to make panels in other colours
Colour of the steel structure - according to the RAL palette - standard RAL 7035

Optional solutions available

LED lighting on communication routes
Side blinds covering the structure, fixed or removable
Mechanism for synchronous row expansion/retraction

Lengths of tribunes

Manual tribunes consist of modules, the dimensions of which are adapted individually for each facility. The maximum module width is 6 m.
Electrically operated tribunes are designed individually for each facility - as one module with a length adapted to site conditions.

In order to obtain full information, please contact the Technical and Trade Department.
