Trybuny zsuwane teleskopowo z siedziskami uchylnymi grawitacyjnie
  • Trybuny zsuwane teleskopowo z siedziskami uchylnymi grawitacyjnie

Telescopic tribune with tilting under gravity seats

14-1000
VAT included

Telescopic tribune, equipped with gravity tilting plastic seats; tribune certified for compliance with PN-EN standards

Quantity
mail_outline Ask a question

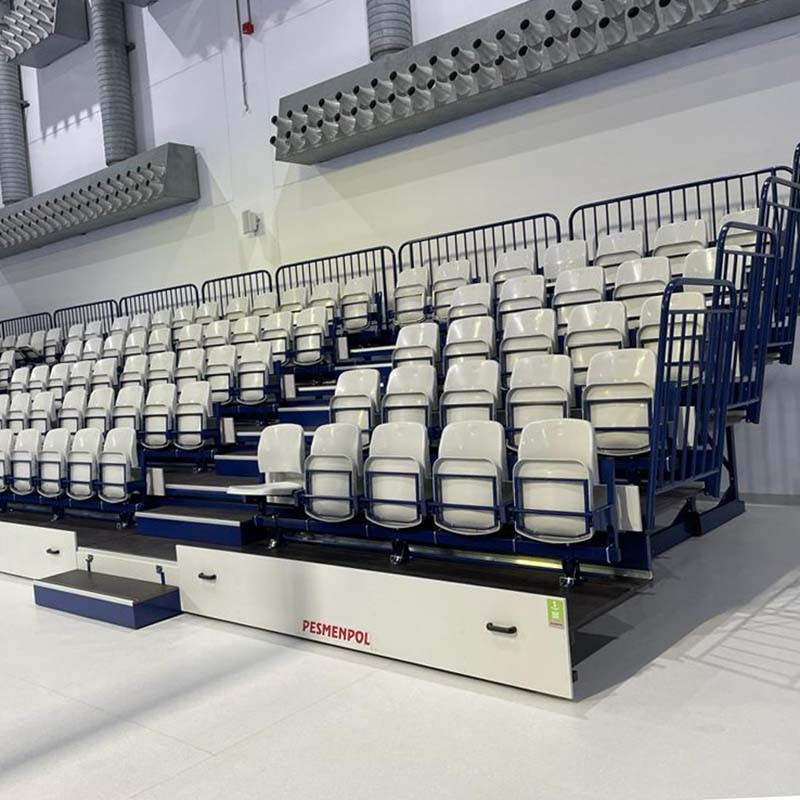

Telescopic tribune with tilting under gravity seats

Intended: for indoor use

Basic features of the system:

  • Individual design - the ability to adapt to each facility
  • Modern design and high aesthetic
  • Simple way of folding and unfolding, based on frictionless roller system; tribune can be folded and unfolded by only one person
  • Safe bearing wheels
  • The tribune colours can be freely configured
  • Safe platforms are made of anti-slip board
  • Additional middle steps
  • The steps finished with aluminum angles with rubber (anti-slip) insert
  • There is no need to disassemble railings in order to fold the tribune

Material and technical specification:

Type of seats Two-piece gravity-tilting seats with backrest ~ 38 cm
Steps finishing Aluminum angle with a rubber / anti-slip insert
The width of the entrances >120 cm
Metal surfaces finishing Powder coating by the RAL palette
  As a standard RAL 7035
Railings colour As a standard RAL 7035 or in the colour of the structure
Material of the platform HEXA anti-slip board 18 mm thick, black as standard
Other finishing available on special request
Maximum permissible tribune load According to the standard PN-EN 1991-1-1

Wheels
The movement of the tribune on the surface of the sports hall is performed by safe bearing wheels. We use two types of wheels:
- Polyamide-polyurethane wheels D=100 mm applied to the tribunes with a small number of rows.
- Aluminum-polyurethane D=100 mm applied to the tribunes with a large number of rows.

The length of the tribunes and the entrances
The length of the unit:
300 cm;   350 cm;   400 cm;    450 cm;    500 cm;    550 cm;    600 cm;
In the case of individual projects, the length of modules is adapted to the conditions in the facility.

Transporting the tribunes
PESMENPOL tribunes can be adapted for transportation, e.g. for storage. In order to transport the tribunes, we provide a set of two six-wheeled system trolleys.
We manufacture three versions of the structure due to the mobility of the tribune:
1. Tribune without a moving system - designed for permanent installation in a specific place.
2. Foldable sliding tribune – has the ability to move in direction perpendicular to the wall (frontal plane of the tribune), which, for example, makes it easier to keep clean behind the stands.
3. Foldable moving tribune – has the ability to move in direction perpendicular to the wall (frontal plane of the tribune) and - after lifting using system trolleys - possibility of transportation to any place. In order to transport the tribunes, we provide a set of two six-wheeled system trolleys.

Note: Foldable tribunes without a moving system can not be extended with sliding functions in the future. If there is a need in the future for the tribune to be mobile, we recommend ordering foldable sliding tribune, that can be extended with a moving system.

Additional safety barriers
Additional safety barriers (compliant with PN-EN 13200-3, figure A1), separating the stands from the arena, are recommended. The minimum height of the barriers - 80 cm, location - at a distance of min. 53 cm from the front of the row of fixed seats. These barriers are not included in the supplied tribune, they should be provided as technical equipment of the sports facility.

Wide range of colours configuration
The colorus of the seats – standard: blue, red, yellow, green.
For large projects, other colours are also available, according to customer requirements.
The colours of the front panels – light gray as a standard. It is possible to make panels in a different color and pattern.


In order to obtain full information, please contact the Technical and Trade Department.
