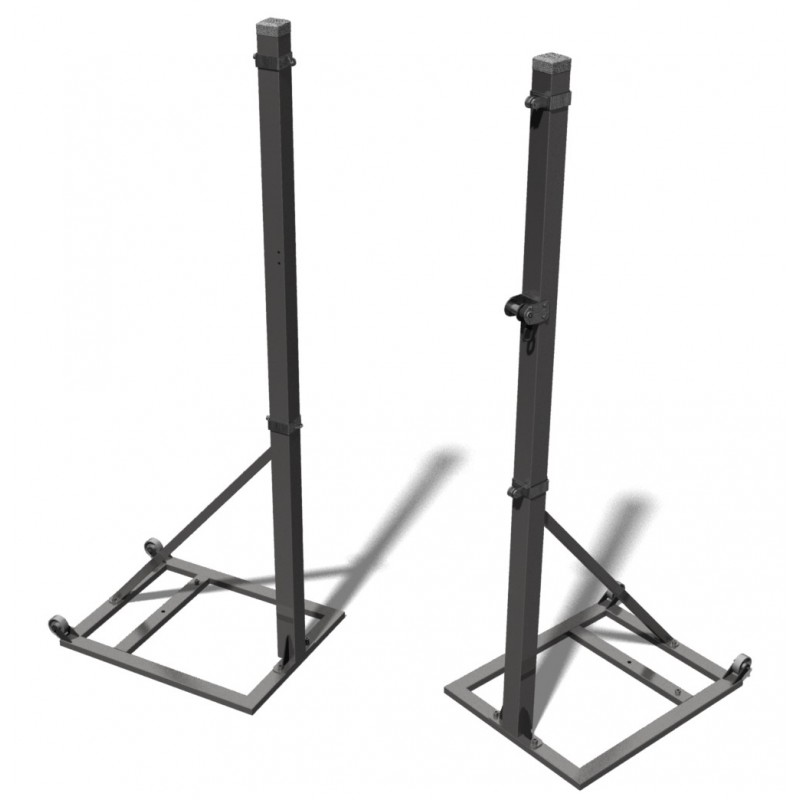

Steel volleyball posts with frame base installed to the ground, profile 80x80 mm

Steel volleyball posts with framework installed to the ground, profile 80x80 mm, external net tension mechanism

The posts are made of special steel square profile 80x80 mm, embedded on a frame basis, for quick and secure installation to the floor using the anchor. This system is mainly intended for use in sports halls, where installation of the sleeves is difficult, e.g. on the 1st floor.

The post is fixed to the ground using the screw with the handle, secured to the anchor embedded in the concrete slab of the sports hall. Large surface of the lower frame profiles safely lies on the floor, without the risk of damage to its surface. Wheels installed at the rear of the frame allow the post to be moved to the storage after dismantling.

The cord of the net is wounded onto safe tensioning mechanism in the form of cylinder. The process of fixing and stretching the net is very simple, with the use of demountable crank, which rotates the cylinder through the self-locking worm gear.

All elements are securely finished; protruding elements are covered with plastic caps, therefore providing safe use.

This design allows to set the net at any height in the range of 106 - 250 cm (the entire unit can be used universally for volleyball, tennis and badminton).
