Single-post basketball structure Strong, for backboard 105x180 cm or 90x120 cm, permanently mounted

Single-post basketball structure Strong with a backboard 105x180 or 90x120 cm, on a post 100x100 mm, permanently mounted

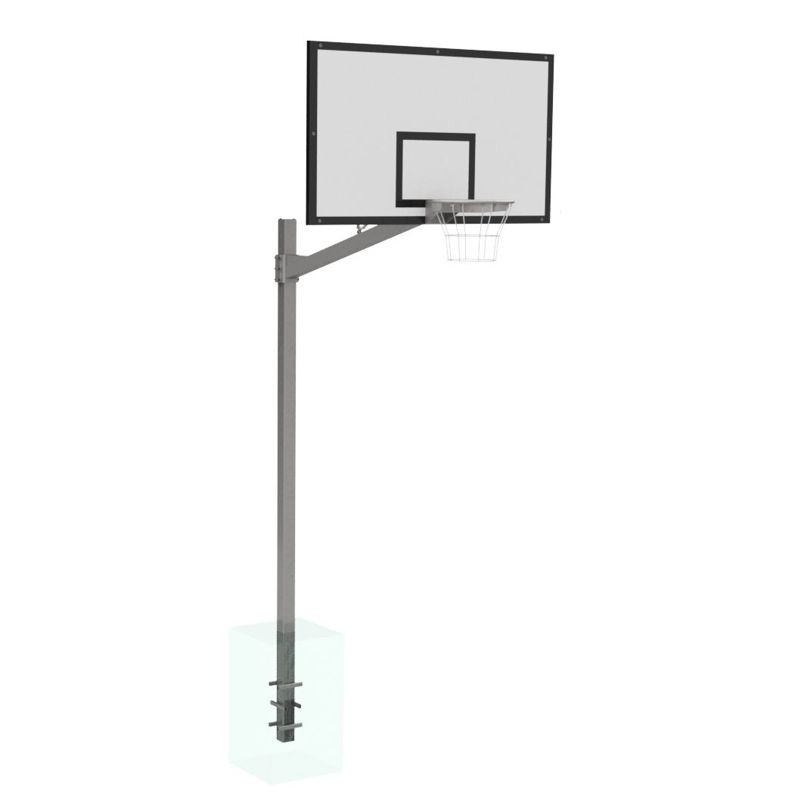

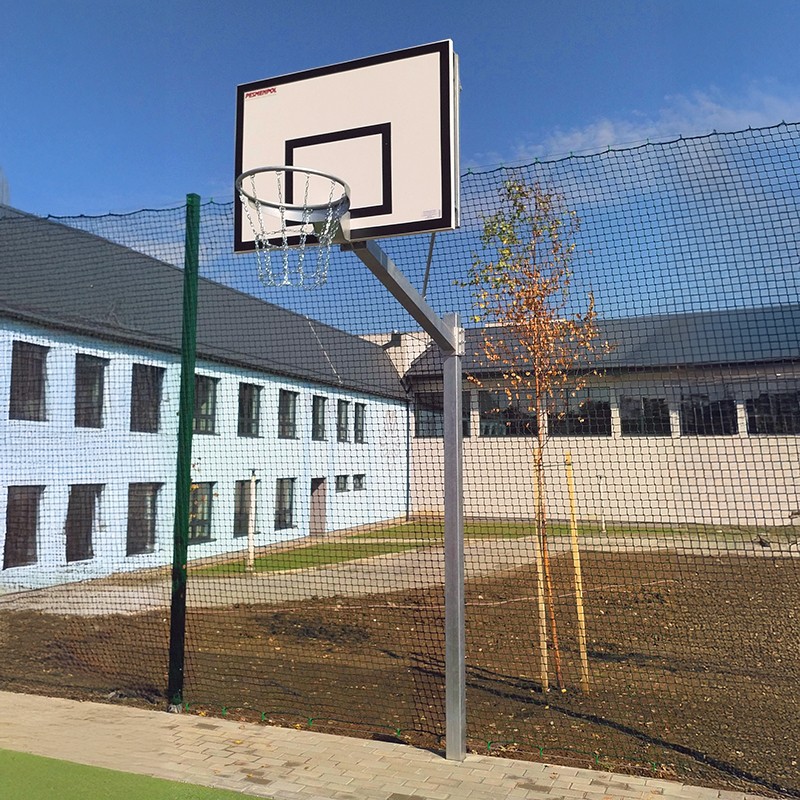

Single-post basketball structure with backboard 105x180 cm or 90x120 cm, projection 1.2 – 1.65 m, permanently mounted, intended for outdoor use on open space (playgrounds, school courts).

The main post, made of profile 100x100 mm, is permanently embedded in a concrete foundation.

Projection arm, made of 90x90 mm profile, is attached to the post on a clamp, made of specially bent 8 mm thick sheets, six M12x45 screws, and with 12 mm thick plate for mounting the backboard. Special holes for M10x45 countersunk screws in the projection arm fixing plate enable easy and trouble-free backboard assembly.

Universal adjustable struts are suitable for various types of backboards (epoxy and steel lattice, and also acrylic or tempered glass).

The whole structure is protected against corrosion by hot dip galvanizing.

The projection arms fixing technology also allows to install two projection arms on one post (on opposite sides of the main post), with the option of setting them at different heights.
