Single-post basketball structure Heavy Duty, for backboard 105x180 cm or 90x120 cm, screwed to the concrete foundation

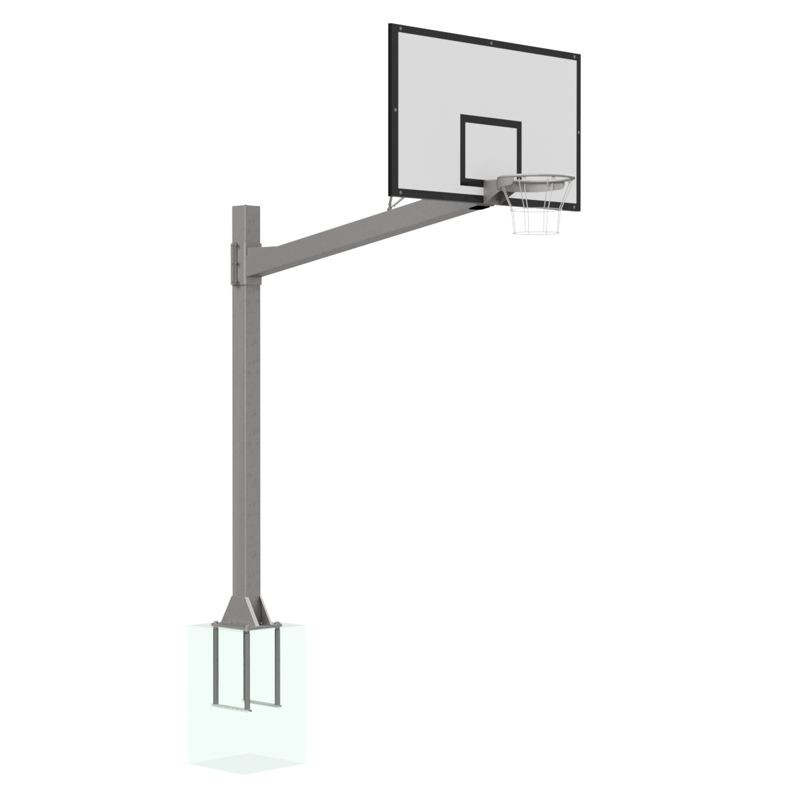

Single-post basketball structure Heavy Duty with a backboard 105x180 or 90x120 cm, on a post 150x150 mm, with the base screwed to the installation plate (with fixing elements) embedded in concrete

Single-post basketball structure with backboard 105x180 cm or 90x120 cm, projection 1.2 – 2.25 m, intended for outdoor use on open space (playgrounds, school courts), with the base screwed to the installation plate (with fixing elements) embedded in concrete.

The main post, made of profile 150x150 mm, is screwed to the installation plate (with fixing elements) embedded in the concrete foundation. Thanks to the use of a special technology, after dismantling the post, there are no protruding dangerous elements in the ground.

Projection arm, made of 150x150 mm profile, is attached to the post on a clamp, made of specially bent 8 mm thick sheets, six M12x45 screws, and with 12 mm thick plate for mounting the backboard.

Universal adjustable struts are suitable for various types of backboards (epoxy and steel lattice, and also acrylic or tempered glass).

The whole structure is protected against corrosion by hot dip galvanizing. Optionally, we offer double anti-corrosion protection (hot galvanizing + powder coating)*.

The projection arms fixing technology also allows to mount up to four projection arms on one post (for projections up to 1.65 m) on each side of the main post, with the option of setting them at different heights.

*The use of double anti-corrosion protection technology for steel structures should be individually agreed with the Sales Department.
