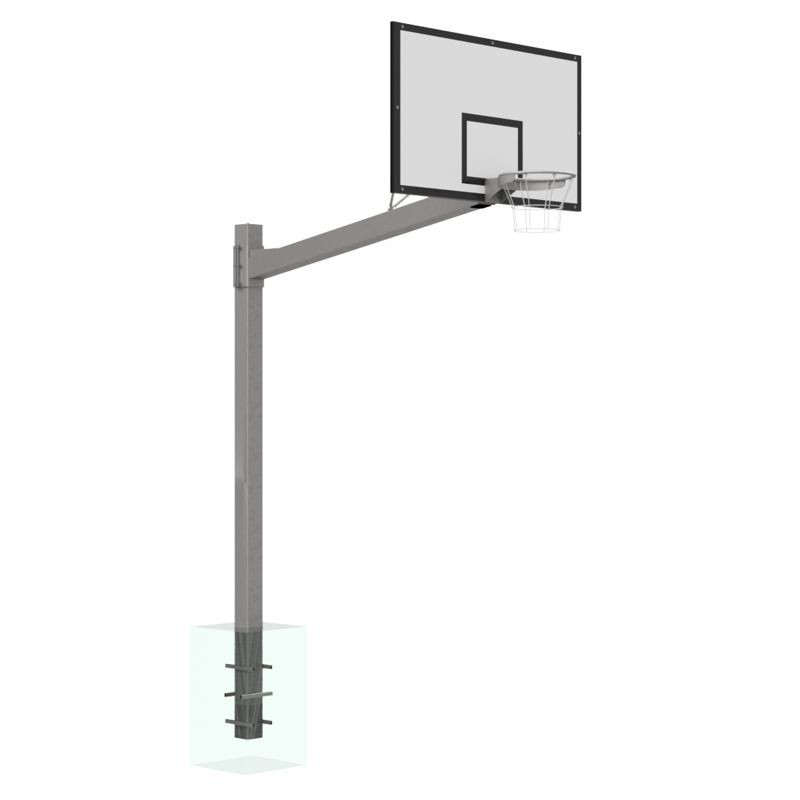

Single-post basketball structure Heavy Duty, for backboard 105x180 cm or 90x120 cm, permanently mounted

Single-post basketball structure Heavy Duty with a backboard 105x180 or 90x120 cm, on a post 150x150 mm, permanently mounted

Single-post basketball structure with backboard 105x180 cm or 90x120 cm, projection 1.2 – 2.25 m, intended for outdoor use on open space (playgrounds, school courts), permanently mounted.

The main post, made of profile 150x150 mm, is permanently embedded in a concrete foundation.

Projection arm, made of 150x150 mm profile, is attached to the post on a clamp, made of specially bent 8 mm thick sheets, six M12x45 screws, and with 12 mm thick plate for mounting the backboard.

Universal adjustable struts are suitable for various types of backboards (laminated and steel lattice, and also acrylic or tempered glass).

The whole structure is protected against corrosion by hot dip galvanizing. Optionally, we offer double anti-corrosion protection (hot galvanizing + powder coating)*.

The projection arms fixing technology also allows to mount up to four projection arms on one post (for projections up to 1.65 m) on each side of the main post, with the option of setting them at different heights.

*The use of double anti-corrosion protection technology for steel structures should be individually agreed with the Sales Department.
