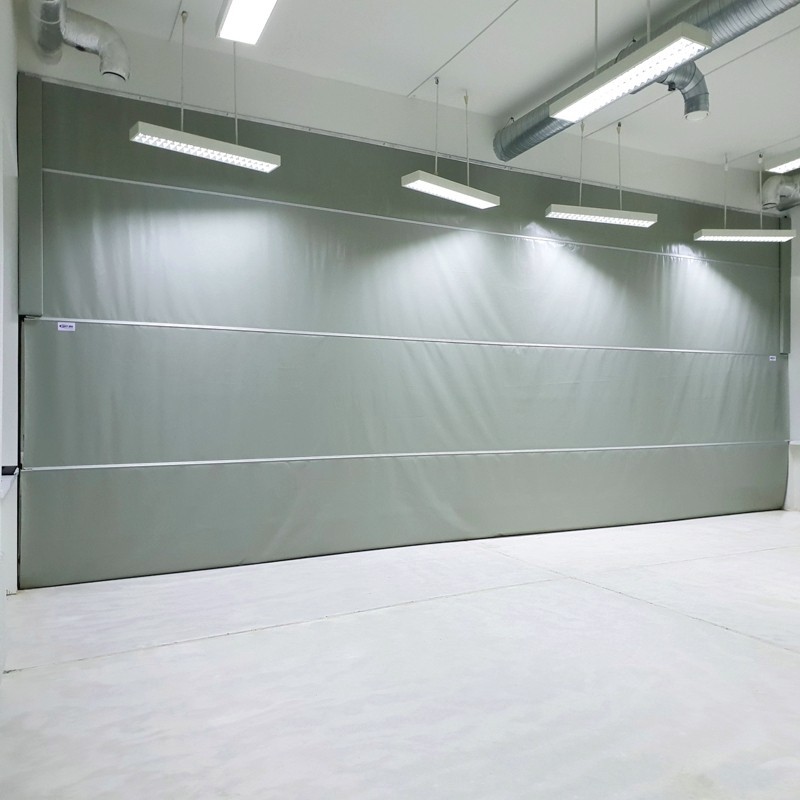

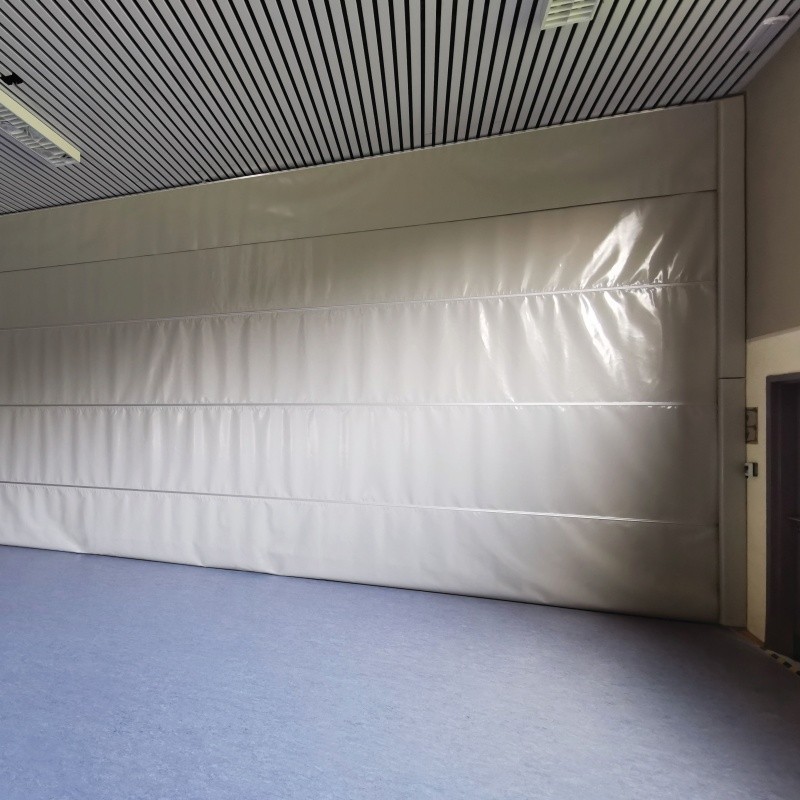

Double-layer dividing curtain, made of PVC

Double-layer dividing curtain, made of PVC

Double-layer dividing curtain is made of segments of PVC material connected with a Kedar system with the use of aluminum system profiles.

The number of segments of PVC material is adapted to the height of the hall. Both layers of the curtain are connected to each other by cords with holders, mounted at the height of each of the aluminum profiles. The last element connecting the layers of the curtain is equipped with a stiffening support beam, which is connected with the drive of the curtain on special belts.

The belts are located between the layers of the curtain, which makes them inaccessible to third parties. By winding the belts on the drums of the curtain raising system, the stiffening support beam is lifted, which causes the folding of subsequent PVC segments and, as a result, the folding of the entire curtain.

A double-layer curtain can reduce sound transmission between separated zones – however, a prerequisite for achieving the noise attenuation effect is the installation of special covers (code 6-1153) between the edge of the curtain and the adjacent walls.

6-1151-12 Double-layer dividing curtain, made of PVC with a basis weight 1200 g/m² on each side

6-1153 Covers for double-layer curtains
