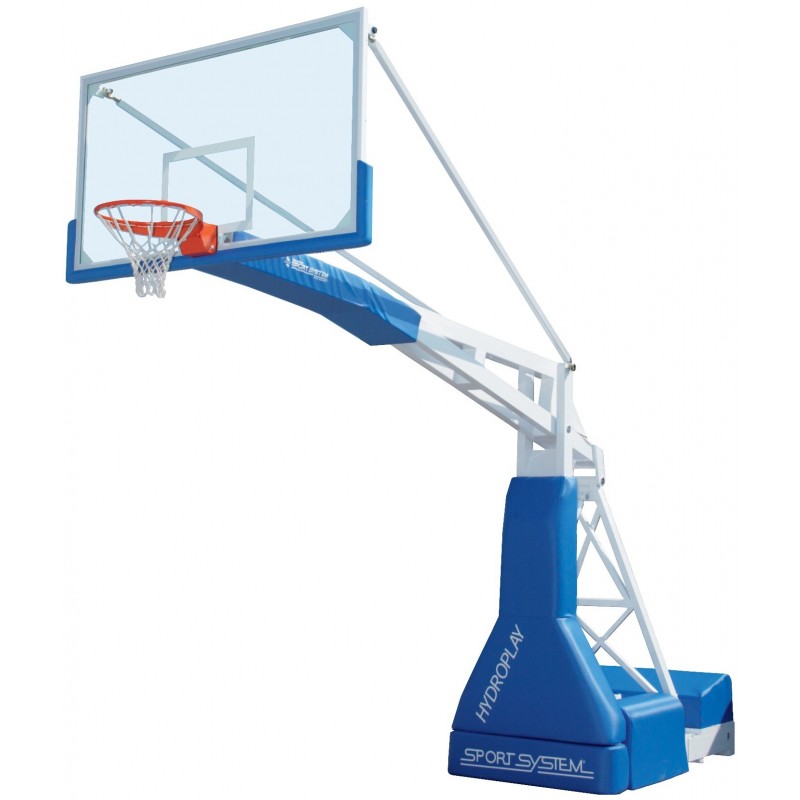

Portable basketball backstop HYDROPLAY OFFICIAL, projection 3,25 m, hydraulically manually folding with height adjustment mechanism, safety glass backboards 105 x 180 cm, tilting ring, protective pads for structure and backboard, basketball net, FIBA certified

Quantity
mail_outline Ask a question

S04106 HYDROPLAY OFFICIAL

Oleo-dynamic mobile basketball backstops. Varnished steel structure, hinges and joints fitted on bearings (pivotal or anti-friction positions). Adjustable height and position of boards. “PLAY” position (basketball structure unfolded) and “REST” position (basketball structure folded) is activated with the use of oleo-dynamic delivery pump panel. Steam regulator ensures the increase or decrease of the rate of lifting or lowering the board. The valve permanently fitted on the cylinder guarantees the blockage of movement in the desired direction during irregular and an-smooth operation caused by clogged or cracked wires.

Mobile system consists of two mobile and two stationary wheels, which are pulled out or retracted when basketball unit is lifted or lowered. Shield is covered with synthetic and washable material 15 cm thick. Safety glass boards equipped with covers of lower edges. Mobile basketball ring with the net made of reinforced cotton.

Approximate weight of a complete system: 1050 kg. The system when delivered comes complete with the following elements: two tempered safety glass boards 180x105 cm with the thickness of 12 mm, with covers of lower edges; two basketball rings with nets. The system contains rear plates for anchoring to the floor. Projection: 325 cm. Required length for proper setting: 425 cm.Dimensions after folding: 410x185x170 cm.

The system complies with FIBA standards (Level 1).
