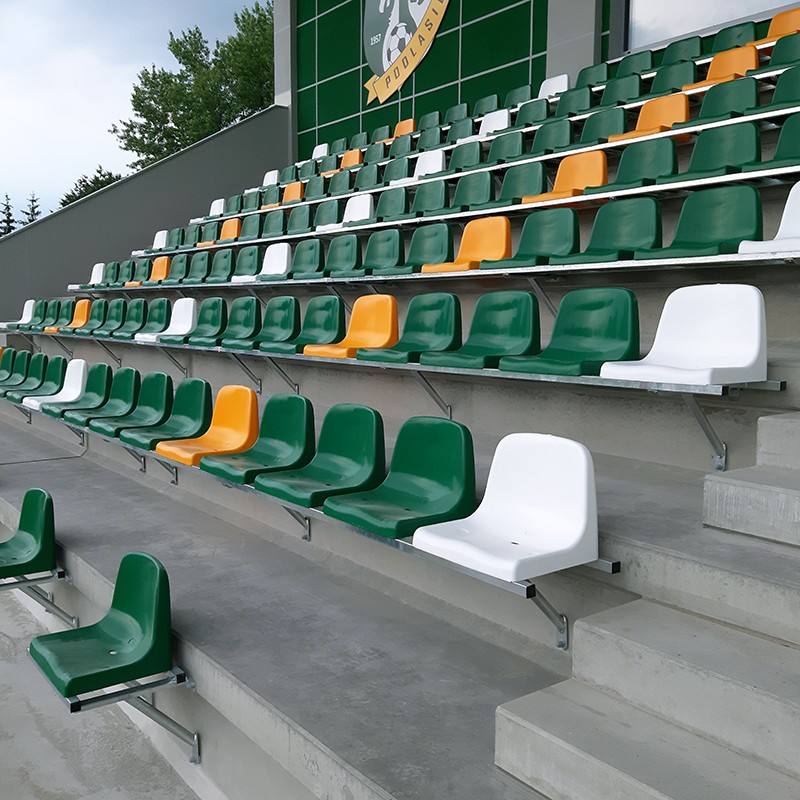

One-piece plastic seats fixed to the outdoor spectator stand on a hot-dip galvanized steel structure

We offer the supply and installation of seating in facilities equipped with spectator stands featuring concrete or steel tier structures. The seating installation option depends on the technical conditions of the facility.

Plastic shell seats fixed to the floor on a hot-dip galvanized steel structure

Single-piece (shell) seats are manufactured from injection-moulded polypropylene. When mounted on a steel structure, they can be installed either to the riser or to the tread of the spectator stand. The robust steel structure guarantees safe use. Protection of steel elements by hot-dip galvanizing ensures effective anti-corrosion protection and long-term service life.

Shell seats on a structure, installed to the riser

The seats are screwed to a beam which is fixed to the riser using special brackets. Hot-dip galvanized steel structure.

Shell seats on a structure, installed to the tread

The seats are screwed to a beam which is fixed to the tread using special support legs. Hot-dip galvanized steel structure.

Plastic shell seats suitable for installation to the floor on a steel structure are available in four types:

• SP-11 (height 11 cm) – seat without backrest
• SP-25 (height 25 cm) – seat with backrest
• SP-32 (height 32 cm) – seat with a double-wall backrest
• SP-36 (height 36 cm) – seat with a profiled high backrest

Shell seats are resistant to both high and low temperatures; therefore, they do not deform during summer heatwaves and do not crack in winter under frost conditions. They are also resistant to UV solar radiation and do not fade. Water is drained through an opening located in the central part of the seat.

Each of the offered models holds the required certifications (fire resistance, toxicity and strength). Seats are available in the following colours: red – RAL 3020, green – RAL 6032, yellow – RAL 1003, blue – RAL 5010. Other RAL colours available on special order.
