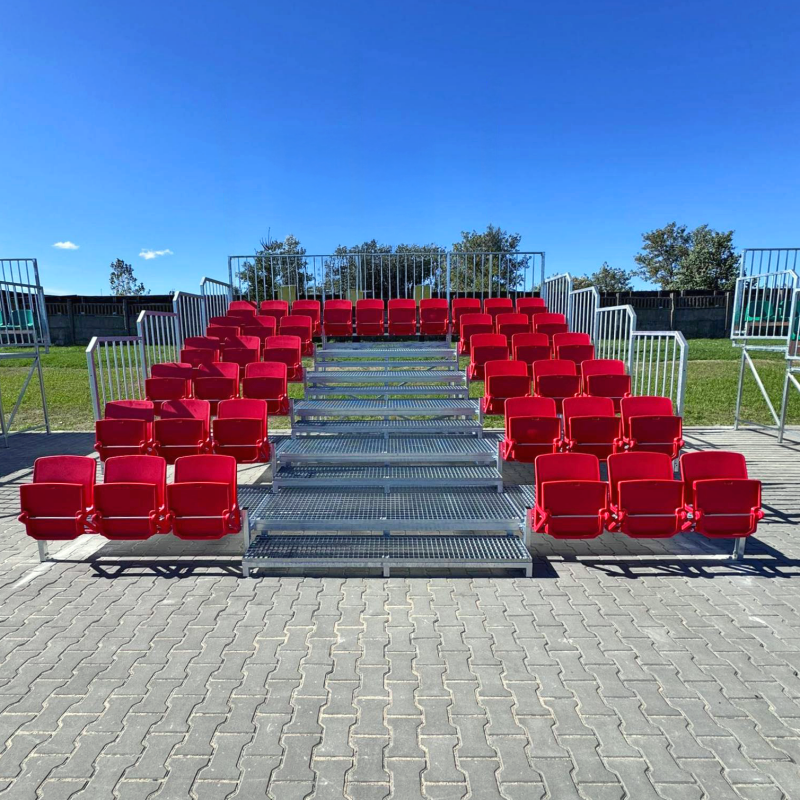

Stationary tribunes with gravity-folding seats, type TZ-Omega - for outdoor use

14-61V-Omega
VAT included

Stationary demountable sports tribune for outdoor use, equipped with gravity-folding chairs Omega, lattice platform WEMA type and steel structure - hot dip galvanized; certificate of compliance with EN-PN standards

Quantity
mail_outline Ask a question

Fixed tribunes with gravity-folding seats, type TZ-Omega - for outdoor use

Intended: for installation at outdoor pitches, sports stadiums, performance venues, schools and event facilities, etc.

Basic features of the system:

  • The structure of the tribune is made of steel profiles. Ready-made structural elements are protected against corrosion by hot dip galvanizing
  • Lattice platform type WEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
  • Safety railings
  • The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes
  • Certificate of compliance with EN-PN standards

Material and technical specification:

Axial spacing of seats 500 mm
Type of seats Two-piece gravity-tilting OMEGA chairs with backrest ~ 37 cm
Level difference between platforms 280 mm
The height of the middle steps 140 mm
The width of the entrances >120 cm
Structure elements finishing Hot-dip galvanizing
Material of the platform Lattice platform type WEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
Maximum loading According to the standard EN-PN 13200

The number of rows / Parameters 2 3 4 5 6 7 8
The depth of the tribune [cm] 132 217 302 387 472 557 642
The height of the last platform [cm] 28 56 84 112 140 168 196
Average number of seats per 1 m* ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.


Stationary tribune with gravity-folding plastic seats. Level difference between following platforms is 280 mm, height of the middle steps: 140 mm.

The structure of stationary tribune is made of closed steel profiles and metal sheets, protected against corrosion by hot dip galvanizing.

Stationary tribunes intended for outdoor use are equipped with platforms made of hot dip galvanized steel lattice (other types of platforms, e.g. made of corrugated metal sheets, available on request).

Depending on the design and safety requirements, the tribune may be equipped with hot-dip galvanized rear and side rails.

The tribune is equipped with durable, ergonomic, double-layer Omega chairs with a gravity-folding seat and a contoured, high backrest. The double-walled backrest and seat not only guarantee the chair's high durability but also provide insulation, ensuring the user's comfort while watching the sporting event.

The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department
