Stationary tribunes with plastic seats - for outdoor use
  • Stationary tribunes with plastic seats - for outdoor use

Stationary tribunes with plastic seats - for outdoor use

14-61V - 14-67V
VAT included

Stationary demountable sports tribune, segmental, for outdoor use, with plastic seats, lattice platform VEMA type and steel structure - hot dip galvanized; certificate of compliance with EN-PN standards

Quantity
mail_outline Ask a question

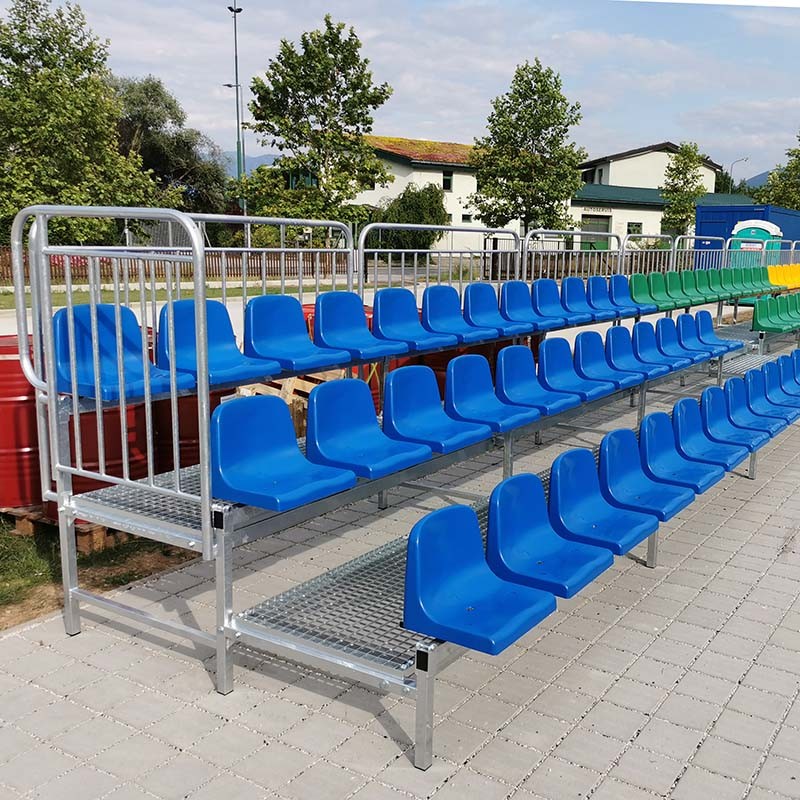

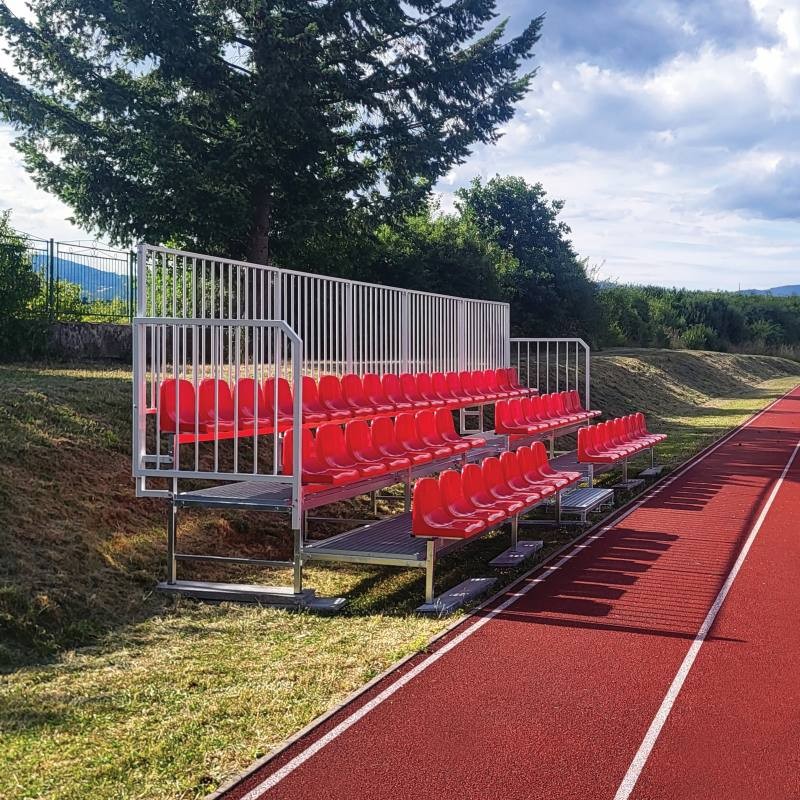

Stationary tribunes with plastic seats - for outdoor use

Intended: for outdoor use

Basic features of the system:

  • The structure of the tribune is made of steel profiles. Ready-made structural elements are protected against corrosion by hot dip galvanizing
  • Lattice platform type VEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
  • Safety railings
  • The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes
  • Certificate of compliance with EN-PN standards

Material and technical specification:

Axial spacing of seats 500 mm
Type of seats Plastic seat without backrest H=11 cm
Plastic seat with medium-high backres H=25 cm
Plastic seat with high backrest H=32 cm
Level difference between platforms 280 mm
The height of the middle steps 140 mm
The width of the entrances >120 cm
Structure elements finishing Hot-dip galvanizing
Material of the platform Lattice platform type VEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
Maximum loading According to the standard EN-PN 13200

The number of rows / Parameters 2 3 4 5 6 7 8
The depth of the tribune [cm] 128 213 298 383 468 553 638
The height of the last platform [cm] 28 56 84 112 140 168 196
Average number of seats per 1 m* ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

General information
Stationary tribune with plastic seats is equipped with railingsassembled at the sides and at the back. Level difference between following platforms is 280 mm.

The structure of stationary tribune is made of closed steel profiles and metal sheets, protected against corrosion by hot dip galvanizing.

Stationary tribunes intended for outdoor use are equipped with platforms made of hot dip galvanized steel lattice (other types of platforms, e.g. made of corrugated metal sheets, available on request).

Plastic seats are available in three types: without backrest, with backrest 25 cm high and with backrest 32 cm high. All are made of polypropylene and have solid supporting structure with additional ribbed reinforcements under the seat.

The double rear wall significantly increases the seat's resistance to vandalism. Water is drained through the opening in the middle of the seat. Seats are resistant to low and high temperatures and UV radiation. Seat attestation: hard to ignite, toxicity, resistance. Basic colours of the seats: green, blue, red yellow. For large projects, colours are chosen according to customer preferences.

The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department

14-61V - 14-67V
