Stationary tribune with a riser, type TSH-350 - for indoor use

14-79-2 - 14-79-8
VAT included

TSH-350 sports tribune with plastic seats, platforms made of anti-slip plywood, risers and outer load-bearing frame enclosures material made of steel sheets, adjustable feet, powder coated steel structure

Quantity
mail_outline Ask a question

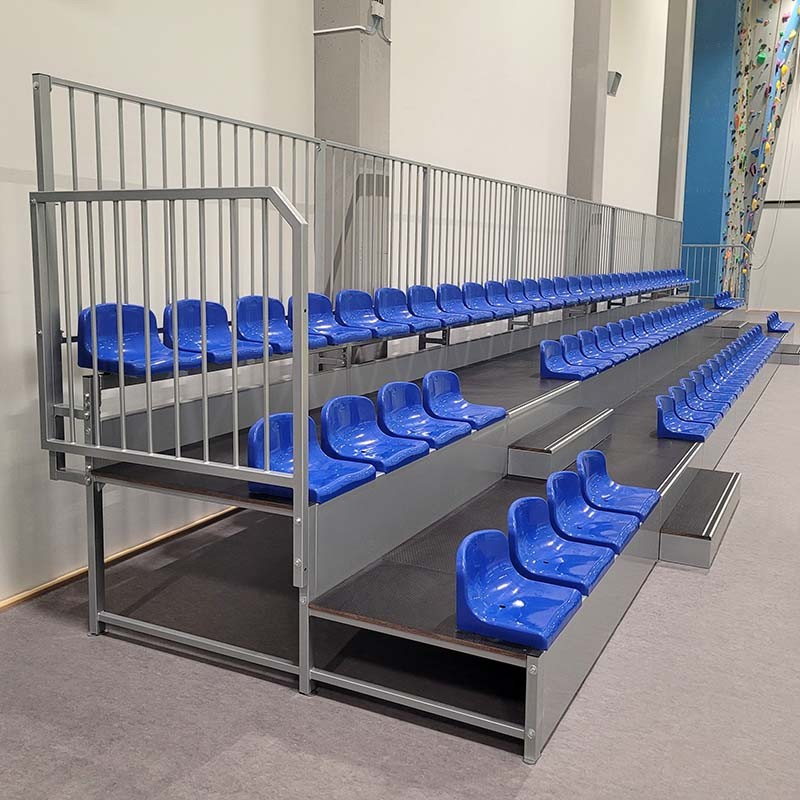

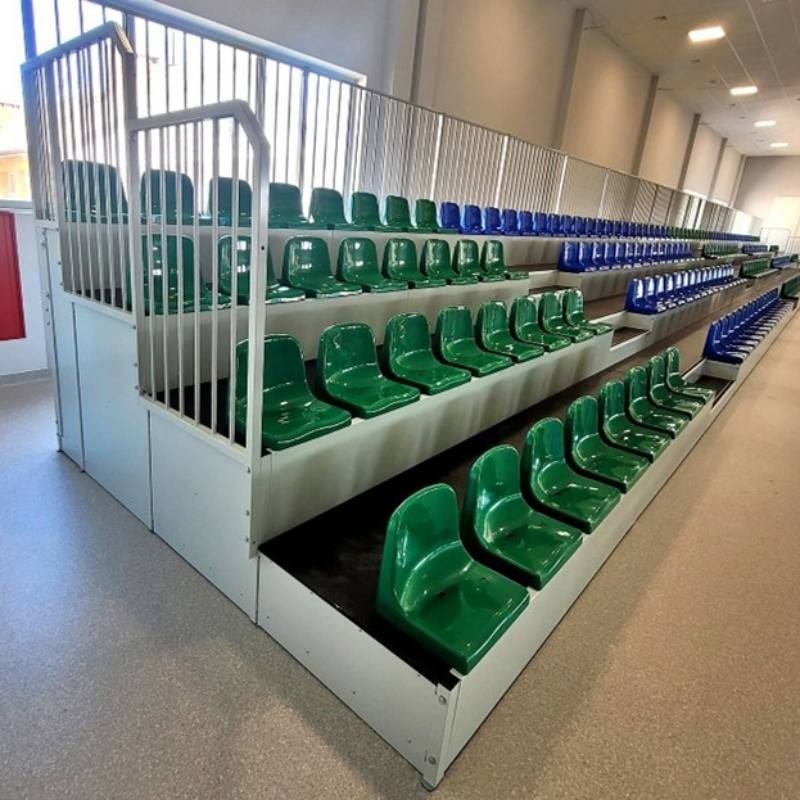

Fixed tribune with a riser, type TSH-350 - for indoor use

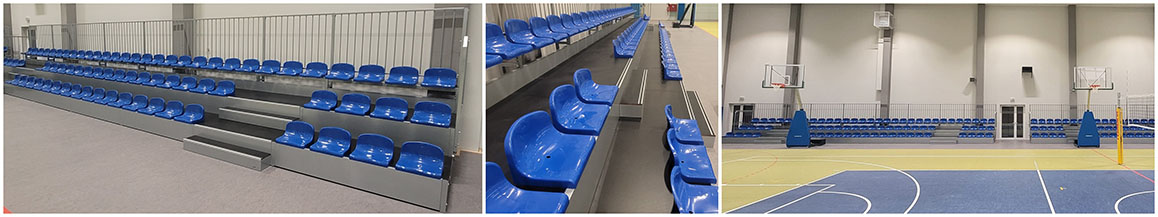

Intended: for indoor installation in sports halls, performance venues, schools and event facilities, etc.


Basic features of the system:
  • Certificate of compliance with EN-PN 13200 standards
  • Steel structure, powder coated
  • Modern design and high aesthetic
  • Individual design - the ability to adapt to each facility
  • Safe platforms made of anti-slip plywood
  • Risers made of steel sheet
  • Outer load-bearing frame enclosures

Material and technical specification:

Axial spacing of seats 500 mm
Type of seats Plastic seat without backrest, H=11 cm
Plastic seat with medium-high backrest, H=25 cm
Plastic seat with high backrest, H=32 cm
Level difference between platforms 350 mm
The height of the middle steps 175 mm
Steps finishing Aluminum safety angles with a rubber (anti-slip) insert
The width of the entrances >120 cm
Metal surfaces finishing Powder coating by the RAL palette
As a standard light gray RAL 7035
Railings colour As a standard RAL 7035 or in the colour of the structure
Material of the platform Anti-slip board 18 mm thick
Riser and outer load-bearing frame enclosures material Steel sheet 1.5 mm thick
Maximum loading According to the standard PN-EN 13200-1

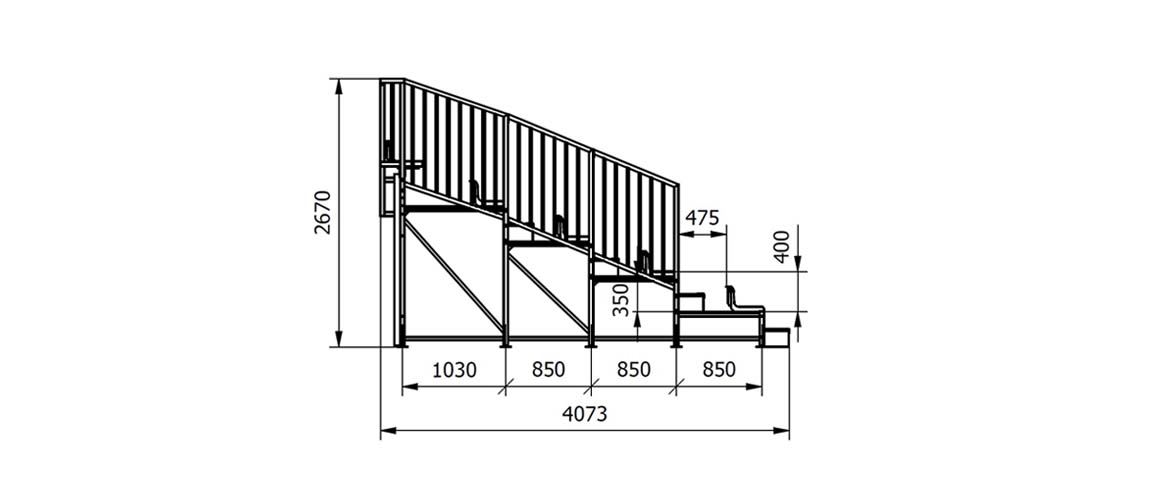

The number of rows / Parameters 2 3 4 5 6 7 8
The depth of the tribune [cm] 130 215 300 385 470 555 640
The height of the last platform [cm] 35 70 105 140 175 210 245
Average number of seats per 1 m * ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

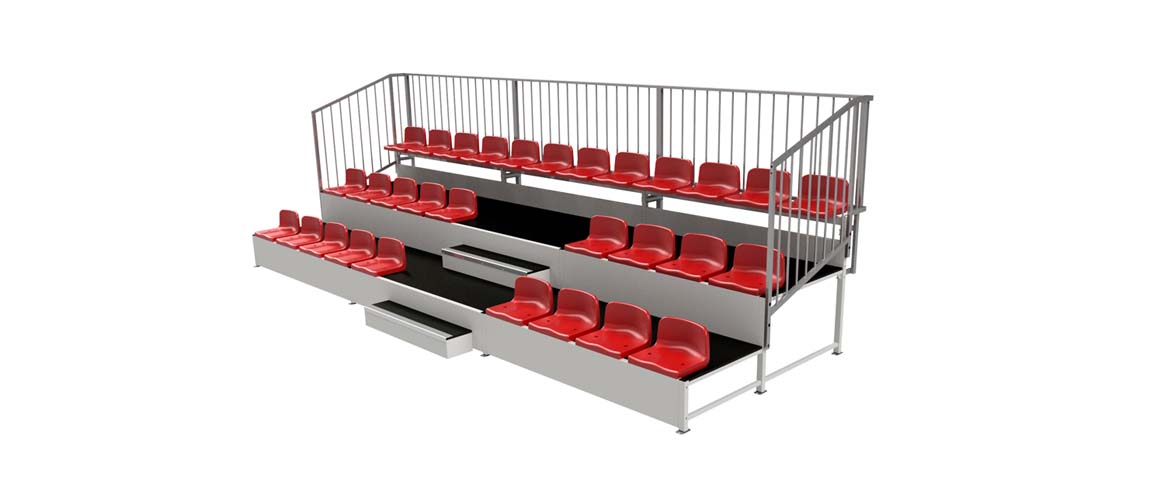

Stationary tribune for indoor use, with plastic seats, riesers and outer load-bearing frame enclosuresmade of steel sheets. Platforms made of 18 mm thickanti-slip plywood. Level difference between following platforms is 350 mm, height of the middle steps: 175 mm.

The structure of the tribune is made of closed steel profiles (transverse frames, connectors, brackets for attaching seats) and hot rolled metal sheets 1.5 mm thick, bent in a special shape, powder coated to any color in the RAL palette (as a standard RAL 7035 – light gray). The frames are mounted in standard spacing of 2000 m or 1500 mm.

Hard to ignite plastic seats available in three types: without backrest, with medium-high backrest and with high backrest.

Depending on the design and safety requirements, the tribune may be equipped with powder coated rear and side rails.

The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department.
