Structure for vertical lifting and lowering of the curtain with electric drive

Reference 6-03

VAT included

Structure for vertical lifting and lowering of a dividing curtain with the use of an electric motor, on the drum of which the ropes lifting and lowering the curtain material are wound, through a system of plastic rollers, attached to the supporting structure, installed directly to the girder

Quantity

Ask a question

Structure for vertical lifting and lowering of the curtain with electric drive

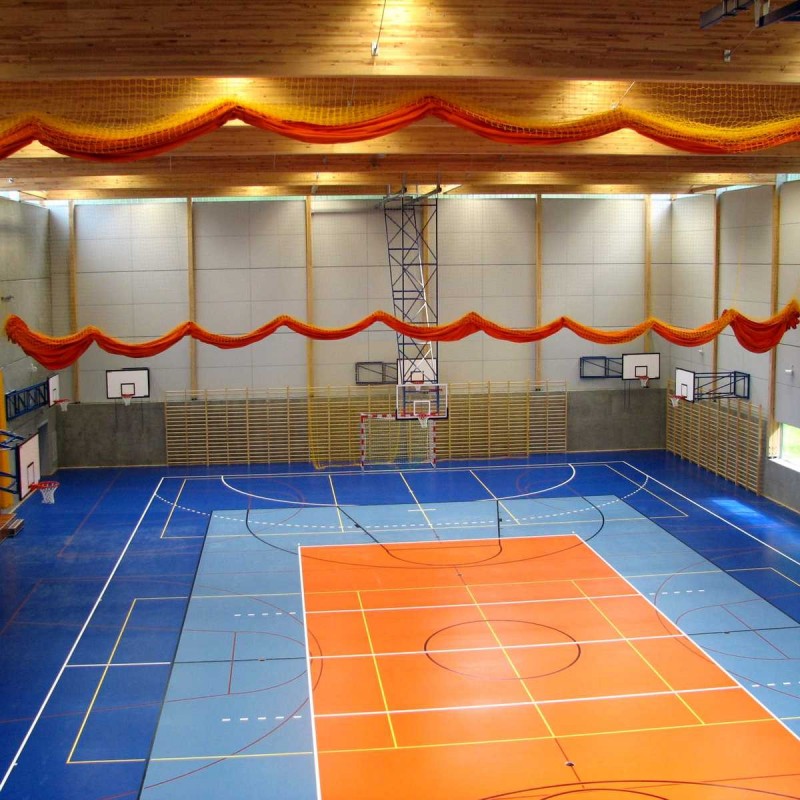

Universal roller set with drive mechanism, installed in the ceiling part of the building structure. Vertically lifts and lowers the curtain fabric, installed to divide the sports facility into sectors or serve as protective nets (ball catchers) on the walls.

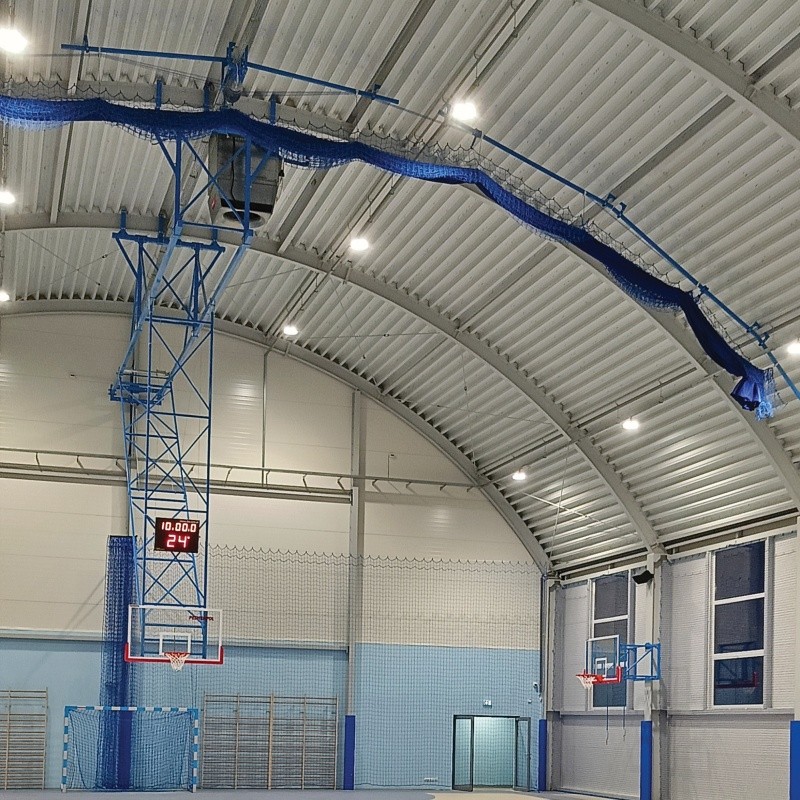

The solution, developed for halls with unusual ceiling structures (e.g. arched ceilings), uses a drive system with a motor shaft with different drum diameters. Thanks to this, the cables wound on the drums lift the curtain at different speeds along its entire length. The result is a perfect fit of the folded curtain to the shape of the ceiling.

Curtains are individually designed, to fit the structure to the existing conditions and dimensions of the sports facility.

Reference 6-03
