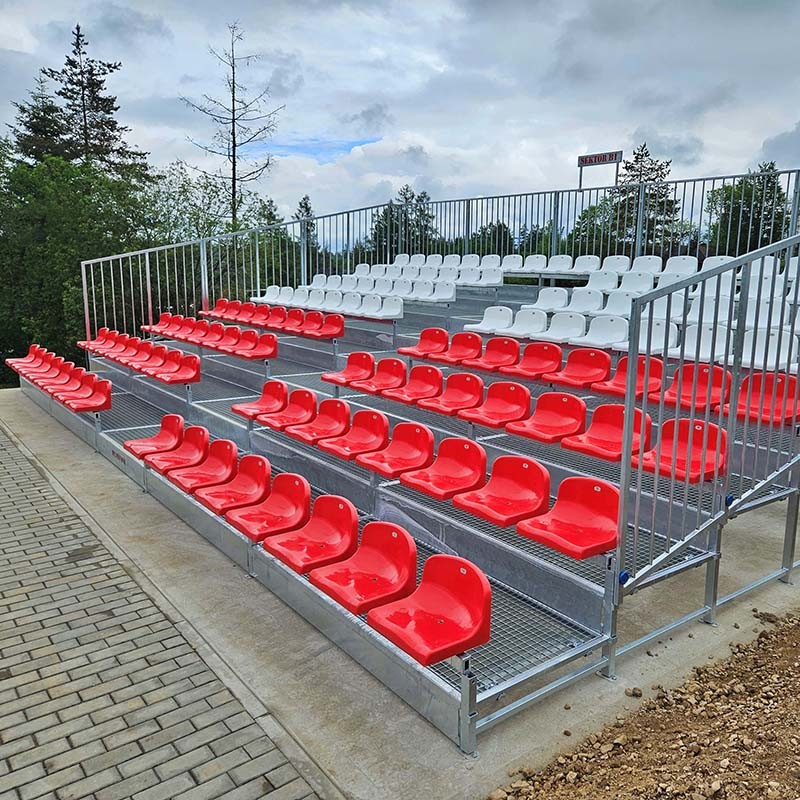

Stationary portable tribune for outdoor use, type TMZ

14-76-12 - 14-76-18
VAT included

Portable (mobile) sports tribune TMZ for outdoor use, with plastic seats, lattice platform VEMA type, risers made of steel sheets, handrails assembled at the sides and at the back, adjustable feet, hot dip galvanized steel structure; certificate of compliance with EN-PN standards

Quantity
mail_outline Ask a question

Stationary portable tribune for outdoor use, type TMZ



Intended: for outdoor use

Basic features of the system:
  • The structure of the tribune is made of steel profiles. Ready-made structural elements are protected against corrosion by hot dip galvanizing
  • Lattice platform type VEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
  • Safety railings
  • The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes
  • Certificate of compliance with EN-PN standards

Material and technical specification:

Axial spacing of seats 500 mm
Type of seats Plastic seat without backrest, H=11 cm
Plastic seat with medium-high backrest, H=25 cm
Plastic seat with high backrest, H=32 cm
Level difference between platforms 200 mm
The height of the middle steps No middle steps
The width of the entrances >120 cm
Structure elements finishing Hot-dip galvanizing
Material of the platform Lattice platform type VEMA, made of hot dip galvanized steel
Maximum loading According to the standard PN-EN 13200

The number of rows / Parameters 2 3 4 5 6 7 8
The depth of the tribune [cm] 128 213 298 383 468 553 638
The height of the last platform [cm] 20 40 60 80 100 120 140
Average number of seats per 1 m* ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

General information
Stationary mobile tribune for outdoor use, with plastic seats and platforms made of galvanized steel lattice.

Tribune is designed for the purpose of handling events, due to the possibility of quick assembly and disassembly, and flexibility in setting up ad hoc the audience. The system is designed in a way as to stop unauthorized removal of individual elements, which prevent thefts.

The tribune is intended for assembling on the hardened ground. The tribune structure is made of closed steel profiles. The main frames are made of closed steel profiles with pillars made of profile 50x40 mm. The longitudinal beams, which connect the frames, are made of profiled metal sheets and are equipped with special handles, allowing quick installation by hanging on the transverse frames. They support the platforms and also serve as risers. The level difference between following platforms is 200 mm, eliminating the need for steps and middle steps.

Hard to ignite plastic seats are offered in three types: without backrest, with medium-high backrest and with high backrest. Transverse frames are equipped with adjustable feet, allowing to compensate for uneven floors in the range to 50 mm. The handrails are assembled at the ends and, if necessary, at the back of the tribune. All metal components are hot-dip galvanized

The design of the tribune is customized for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department.
