Stationary tribune with benches - for indoor use

Reference 14-41 - 14-47

VAT included

Stationary demountable sports tribunes, segmental, equipped with bench seats made of pine plywood, with backrest in the last row; tribunes certified for compliance with PN-EN standards

Quantity

Ask a question

Stationary tribune with benches - for indoor use

Intended: for indoor use

Basic features of the system:

Certificate of compliance with EN-PN 13200 standards
Steel structure, powder coated
Modern design and high aesthetic
Individual design - the ability to adapt to each facility
Safe platforms made of non-slip plywood

Material and technical specification:

Type of seats	Bench seat made of 18 mm thick multilayered pine plywood, top row equipped with backrest
Level difference between platforms	280 mm
The height of the middle steps	140 mm
Steps finishing	Aluminum safety angles with a rubber (anti-slip) insert
The width of the entrances	>120 cm
Metal surfaces finishing	Powder coating by the RAL palette As a standard light gray RAL 7035
Railings colour	As a standard RAL 7035 or in the colour of the structure
Material of the platform	Anti-slip board 18 mm thick
Maximum loading	According to the standard PN-EN 13200-1

The number of rows / Parameter	2	3	4	5	6	7	8
The depth of the tribune [cm]	129	214	299	384	469	554	639
The height of the last platform [cm]	28	56	84	112	140	168	196
Average number of seats per 1 m *	~3,5	~5	~6,5	~8	~9,5	~11	~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

General information

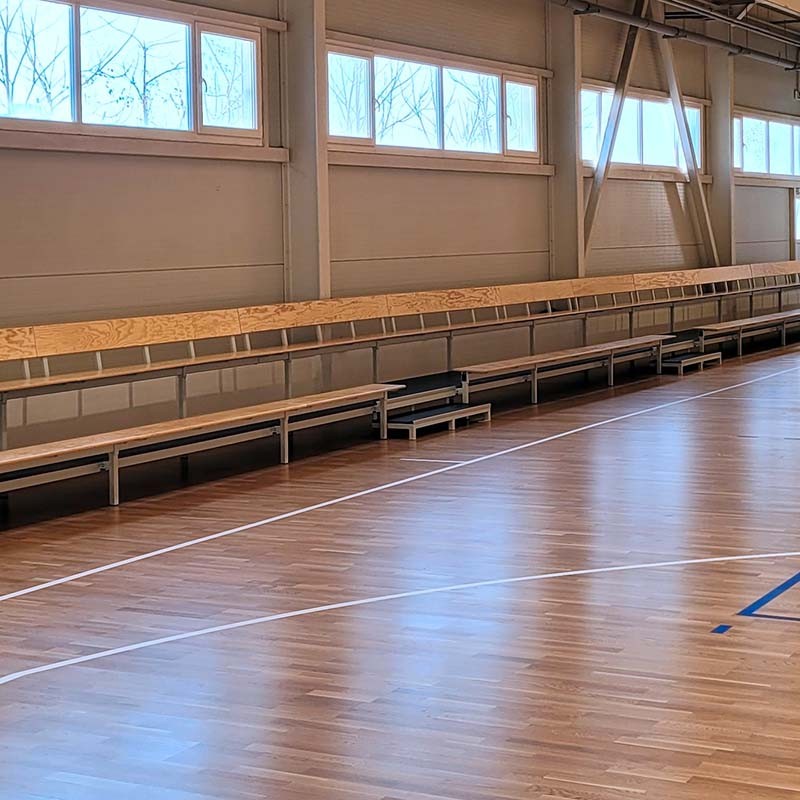

Stationary tribune for indoor use, with benches made of multilayered plywood and platforms made of anti-slip plywood.

The structure of the tribune is made of closed steel profiles (transverse frames, connectors, brackets for attaching seats), protected by powder coating. The frames are mounted in standard spacing of 2000 mm or 1500 mm.

The bench is made of multilayered pine plywood, approximately 30 cm deep and 18 mm thick. The top row of benches is equipped with backrest, also made of plywood. The tribune is equipped with middle steps and safety railings, assembled at the sides, powder coated.

The design of the tribune is customized for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department.
