Telescopically retractable auditorium platforms, with LED lighting

Telescopically retractable auditorium platforms, with LED lighting

Intended: for indoor use

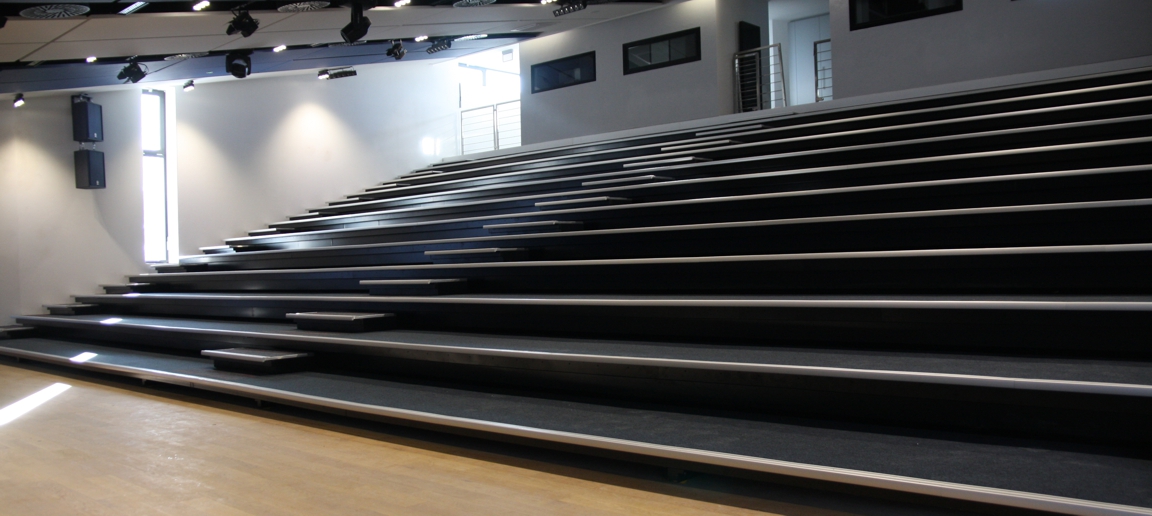

Telescopic folding platforms, with LED lighting, equipped with electric drive. The system consists of moving frames, front- and back connectors, crossbeams and platform boards.

Moving frames are made of steel closed profiles 80x40x2 mm, 40x40x2 mm, steel C-sections 40x40x40x2 mm, 20x40x20x3 mm and hot rolled metal sheets #3, #5 and #8 mm thick. The frame is equipped with safety bearing wheels Φ100 mm (polyamide with polyurethane tread or with aluminum hub and polyurethane tread), and leading rollers, moving inside the profiled furrow of the following frame.

The frames are connected using back and front connectors. The front connector is made of profile 60x40x2 mm, the back connector is made of hot rolled metal sheet 1,5 mm thick. The back connector is bent in a special shape and therefore can carry greater load. The structure is additionally stiffened by crossbeams and struts, made of closed steel profile 40x27x2 mm, finished with fixing plates.

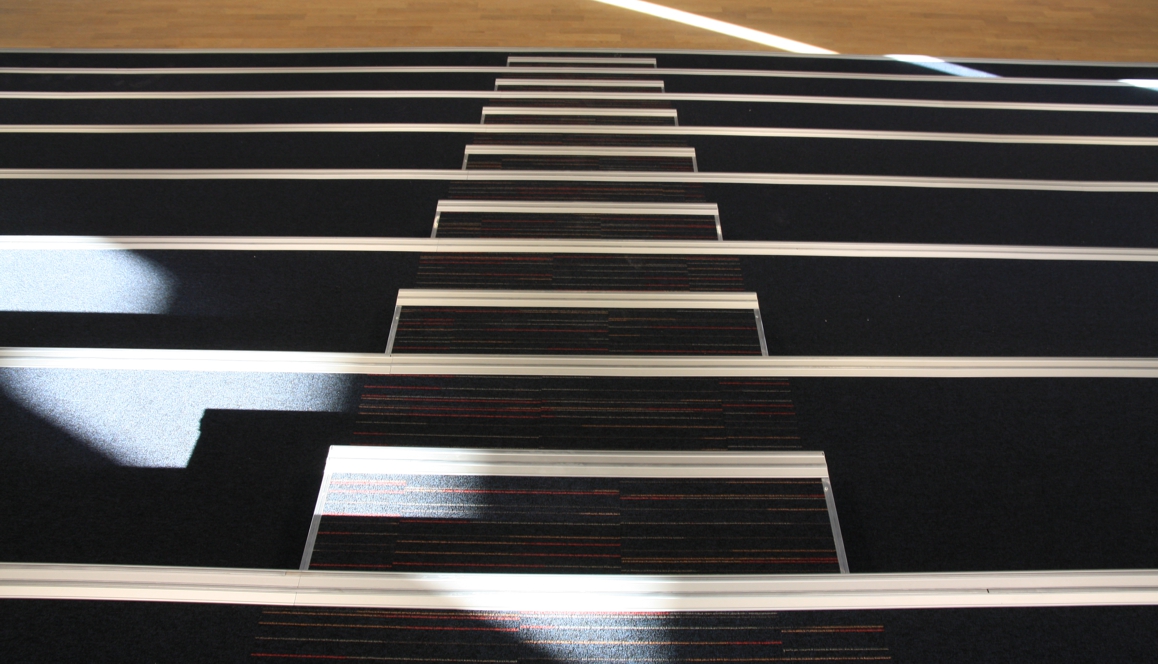

Platform boards,made of 18 mm thick HEXA anti-slip plywood, in black as standard (optionally: covered with carpet), are assembled directly to the structure.

The platform structure is designed according to the client’s guidelines. Through the wide range of maneuvering the difference between the levels of the successive platforms and the length of the entire structure, it is possible to fit the platforms to each object and each function.

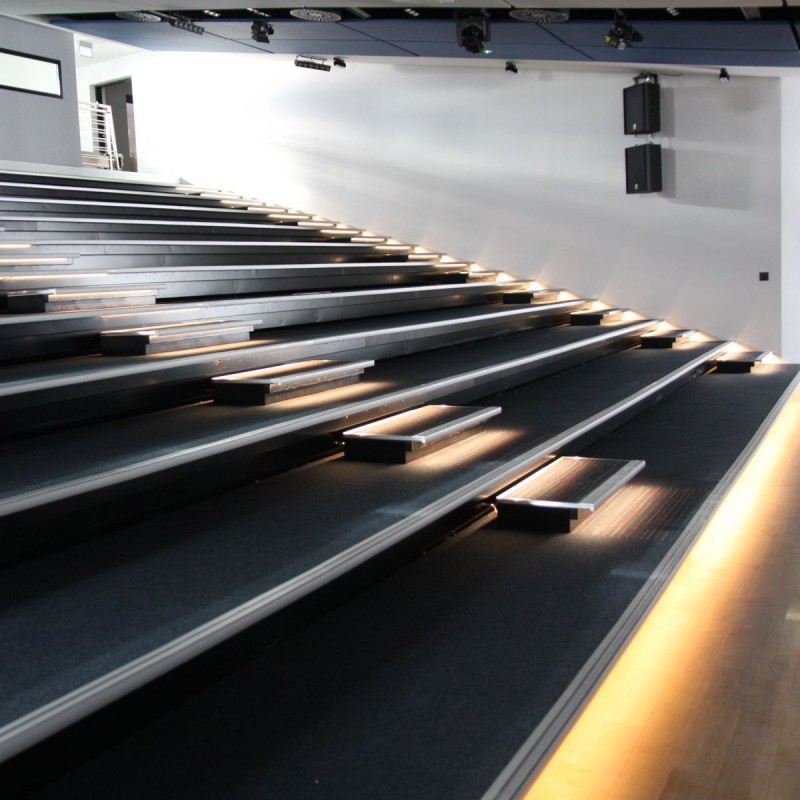

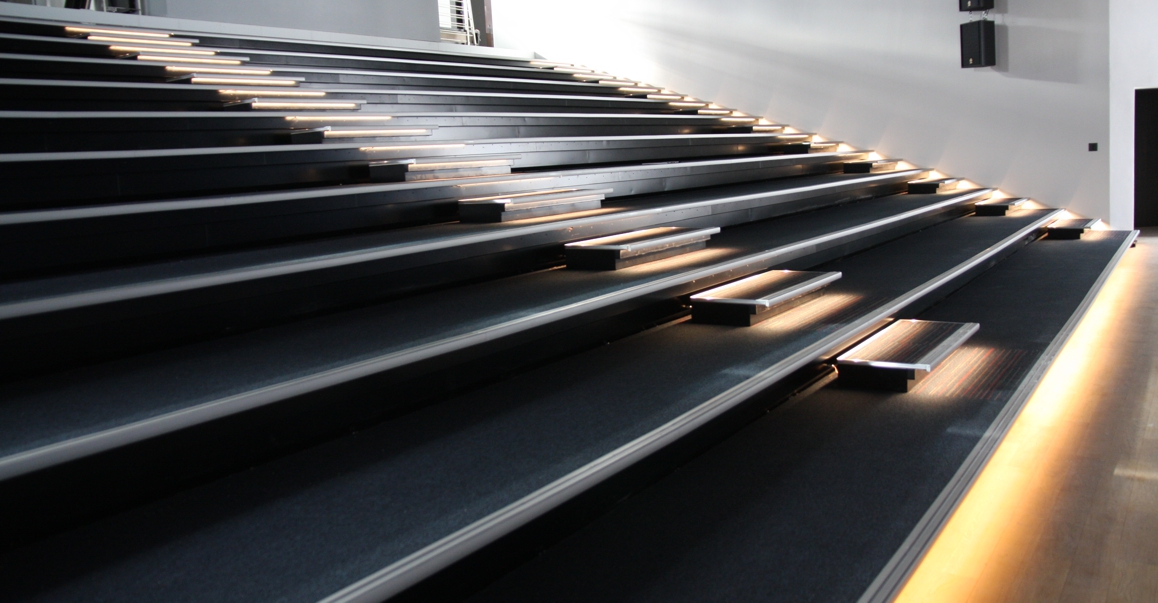

LED lighting in various configurations, for example on communication channels only or on the entire length of the structure, on each platform. is provided for special order.

Material and technical specification:

In order to obtain full information, please contact the Technical and Trade Department.
