Telescopic tribunes with upholstered seats

VAT included

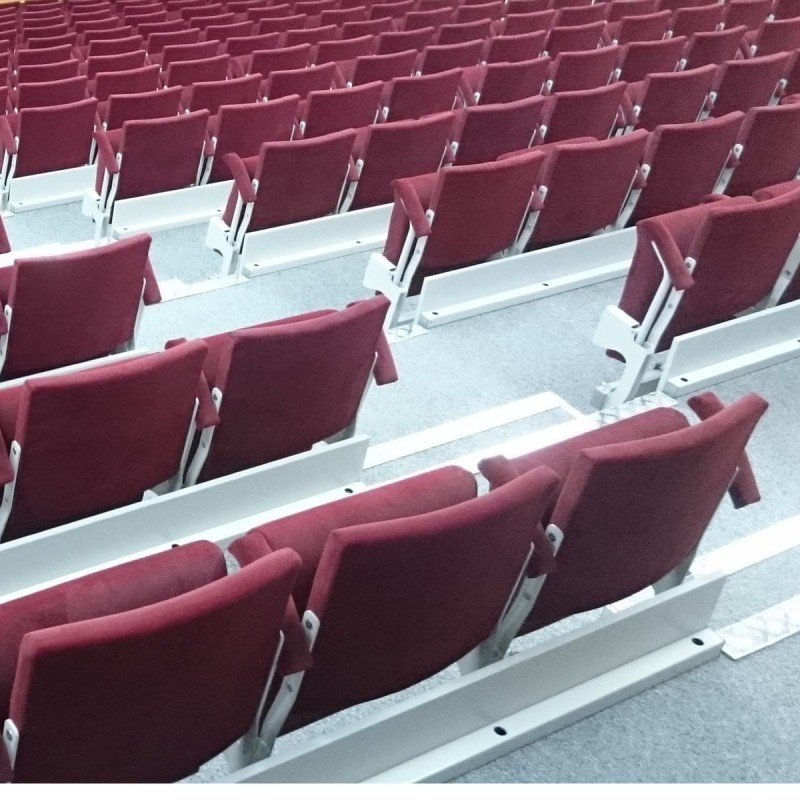

Telescopic tribunes with electric drive, equipped with tilting under gravity upholstered seats

Quantity
mail_outline Ask a question

Telescopic tribunes with upholstered seats


Intended: for indoor use


Basic features of the system:
  • Individual design - the ability to adapt to each facility
  • Modern design and high aesthetic
  • Simple way of folding and unfolding, based on frictionless roller system; tribune can be folded and unfolded by only one person
  • Safe bearing wheels
  • The tribune colours can be freely configured
  • Safe platforms are made of anti-slip board
  • Additional middle steps
  • The steps finished with aluminum angles with rubber (anti-slip) insert
  • There is no need to disassemble railings in order to fold the tribune

Material and technical specification:

Type of seats Gravity tilting upholstered seats
Steps finishing Aluminum angle with a rubber / anti-slip insert
The width of the entrances >120 cm
Metal surfaces finishing Powder coating by the RAL palette
As a standard RAL 7035
Railings colour As a standard RAL 7035 or in the colour of the structure

Material of the platform HEXA anti-slip board 18 mm thick, black as standard
Other finishing (e.g. carpet) available on special request

Telescopic tribune with folding upholstered seats with armrests, equipped with electric drive. The system consists of moving frames, front- and back connectors, crossbeams and platform boards.

Moving frames are made of closed steel profiles 80x40x2 mm, 40x40x2 mm, steel C-sections 40x40x40x2 mm, 20x40x20x3 mm and hot rolled metal sheets #3, #5 and #8 mm thick. The frame is equipped with safety bearing wheels Φ100 mm (polyamide with polyurethane tread or with aluminum hub and polyurethane tread), and leading rollers, moving inside the profiled furrow of the following frame. The frames are connected using back and front connectors. The front connector is made of profile 60x40x2 mm; the back connector is made of cold rolled metal sheet 1,5 mm thick. The back connector is bent in a special shape and therefore can carry greater load.


The structure is additionally stiffened by crossbeams and struts, made of closed steel profile 40x27x2 mm, finished with fixing plates. Platform boards, made of 18 mm thick HEXA anti-slip plywood, in black as standard (optionally: covered with carpet), are assembled directly to the structure. The seats with the folding mechanism are attached to the platforms.

The single seat consists of a movable seat, backrest and armrests. The movable seat is equipped at the rear with an additional ballast, which allows for automatic return to the vertical position. The structure of the seat is made of steel sheets and wood, covered with soft sponge; the whole is upholstered with red velour fabric (as a standard).


In order to obtain full information, please contact the Technical and Trade Department.
