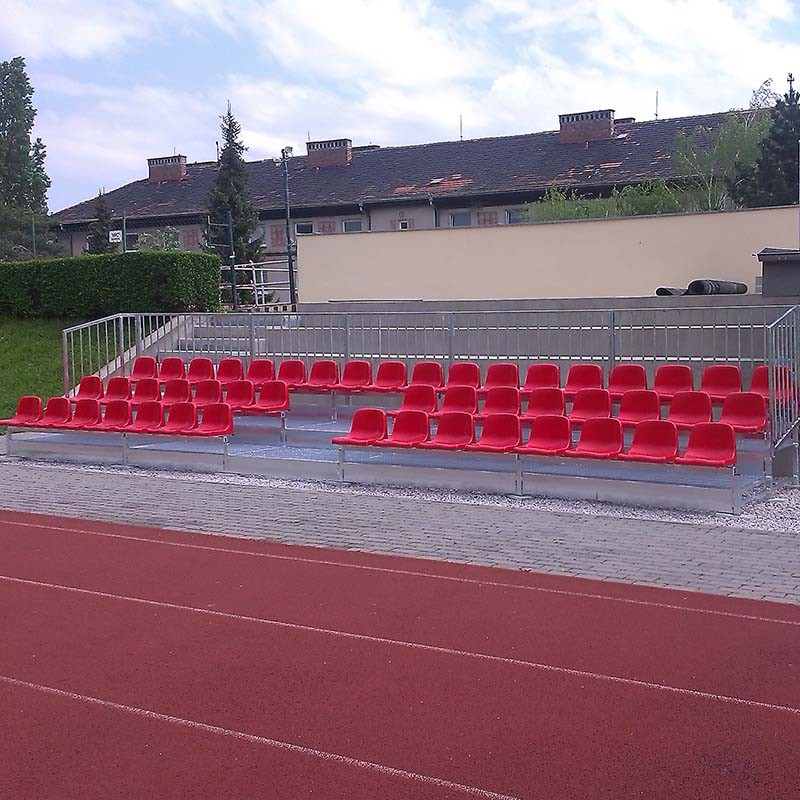

Stationary tribune with a riser, type TSD-200 - for outdoor use

14-76-2 - 14-76-8
VAT included

TSD 200 stationary tribune, demountable, with plastic seats, lattice platform VEMA type, risers made of steel sheets, handrails assembled at the sides and at the back, adjustable feet, hot dip galvanized steel structure; certificate of compliance with EN-PN standards

Quantity
mail_outline Ask a question

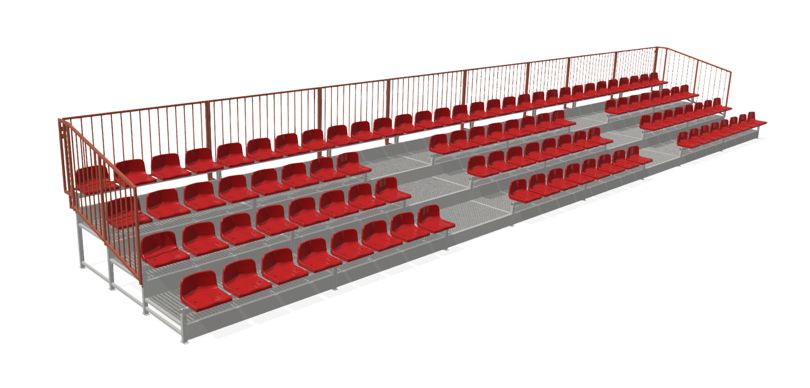

Stationary tribune with a riser, type TSD-200 - for outdoor use

Intended: for outdoor use

Basic features of the system:

  • The structure of the tribune is made of steel profiles. Ready-made structural elements are protected against corrosion by hot dip galvanizing
  • Lattice platform type VEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
  • Safety railings
  • The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes
  • Certificate of compliance with EN-PN standards

Material and technical specification:

Axial spacing of seats 500 mm
Type of seats Plastic seat without backrest, H=11 cm
Plastic seat with medium-high backrest, H=25 cm
Plastic seat with high backrest, H=32 cm
Level difference between platforms 200 mm
The height of the middle steps No middle steps
The width of the entrances >120 cm
Structure elements finishing Hot-dip galvanizing
Material of the platform Lattice platform type VEMA, made of hot dip galvanized steel (other types of platforms, e.g. made of corrugated metal sheets, available on request)
Maximum loading According to the standard PN-EN 13200

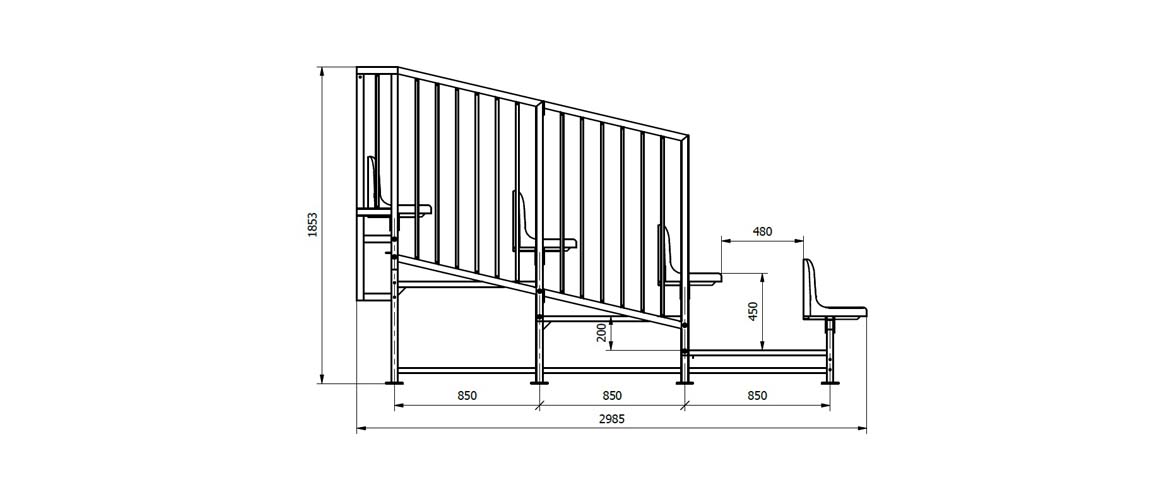

The number of rows / Parameters 2 3 4 5 6 7 8
The depth of the tribune [cm] 128 213 298 383 468 553 638
The height of the last platform [cm] 20 40 60 80 100 120 140
Average number of seats per 1 m* ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

General information

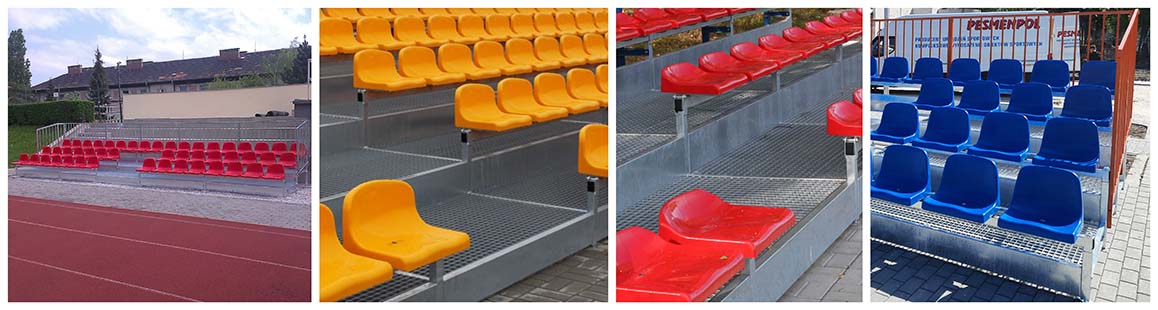

Stationary tribune for outdoor use, with plastic seats and risers made of galvanized steel lattice (other types of platforms, e.g. made of corrugated metal sheets, available on request).

The structure of the tribune is made of closed steel profiles (transverse frames, connectors, brackets for installing seats) and hot rolled metal sheets 1,5 mm thick, protected by hot dip galvanizing. The frames are mounted in standard spacing of 2000 mm or 1500 mm.

Plastic seats (hard to ignite) are available in three types: without backrest, with medium-high backrest and with high backrest. The tribune is also equipped with safety handrails, installed at the rear and at the sides.

The design of the tribune is customized for particular facility, according to the safety directives concerning tribunes.

In order to obtain full information, please contact the Technical and Trade Department.
