  • Stationary tribune with a riser, type TSH-200 - for indoor use

Stationary tribune with a riser, type TSH-200 - for indoor use

14-75-2 - 14-75-8
VAT included

TSH200 sports tribune with plastic seats, platforms made of anti-slip plywood, risers made of steel sheets, adjustable feet, powder coated steel structure

Quantity
mail_outline Ask a question

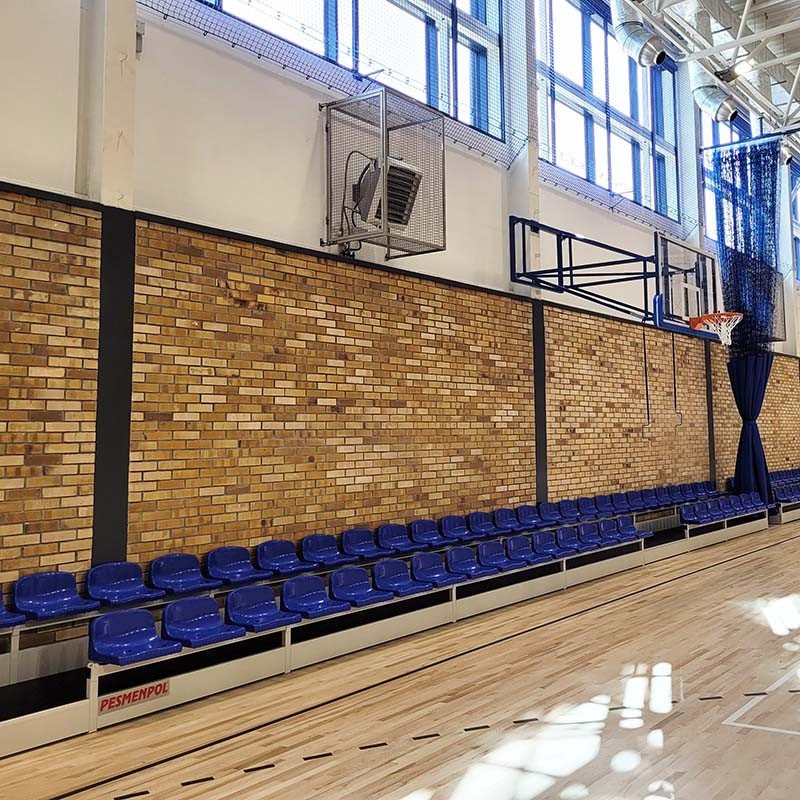

Stationary tribune with a riser, type TSH-200 - for indoor use


Intended: for indoor use


Basic features of the system:
  • Certificate of compliance with EN-PN 13200 standards
  • Steel structure, powder coated
  • Modern design and high aesthetic
  • Individual design - the ability to adapt to each facility
  • Safe platforms made of anti-slip plywood
  • Risers made of steel sheet

Material and technical specification:

Axial spacing of seats 500 mm
Type of seats Plastic seat without backrest, H=11 cm
Plastic seat with medium-high backrest, H=25 cm
Plastic seat with high backrest, H=32 cm
Level difference between platforms 200 mm
Steps finishing Aluminum safety angles with a rubber (anti-slip) insert
The width of the entrances >120 cm
Metal surfaces finishing Powder coating by the RAL palette
As a standard light gray RAL 7035
Railings colour As a standard RAL 7035 or in the colour of the structure
Material of the platform Anti-slip board 18 mm thick
Material of the risers Steel sheet 1.5 mm thick
Maximum loading According to the standard PN-EN 13200-1

The number of rows / Parameters 2 3 4 5 6 7 8
The depth of the tribune [cm] 128 213 298 383 468 553 638
The height of the last platform [cm] 20 40 60 80 100 120 140
Average number of seats per 1 m * ~3,5 ~5 ~6,5 ~8 ~9,5 ~11 ~12,5

* Average number of seats listed in the table may differ from the actual value in the finished project, due to local conditions, layout of seats, number of entrances, etc.

General information
Stationary tribune for indoor use, with plastic seats, riesers made of steel sheets and platforms made of anti-slip plywood.

The structure of the tribune is made of closed steel profiles (transverse frames, connectors, brackets for attaching seats) and hot rolled metal sheets 1.5 mm thick, bent in a special shape, powder coated to any color in the RAL palette (as a standard RAL 7035 – light gray). The frames are mounted in standard spacing of 2000 m or 1500 mm.

Hard to ignite plastic seats available in three types: without backrest, with medium-high backrest and with high backrest. The tribune is equipped with safety railings, installed at the rear and at the sides, powder coated.

The design of the tribune is customize for particular facility, according to the safety directives concerning tribunes.


Length of the tribune - depending on the required number of seats and rows, or conditioned by restrictions in the development of the area.

In order to obtain full information, please contact the Technical and Trade Department.
